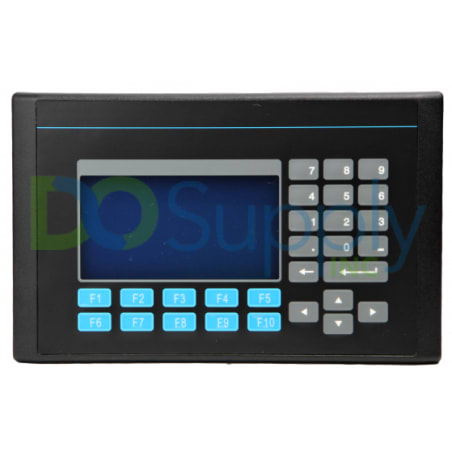

Allen Bradley Panelview 550 2711-K5A3L1X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711-K5A3L1X

|
Need a Specific Revision?

The Allen Bradley 2711-K5A3L1X belongs to the Panelview 550 series, designed for effective human-machine interaction. It features a 5.5-inch monochrome LCD blue mode display with a resolution of 256 x 128 pixels.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711-K5A3L1X

ManufacturerAllen Bradley
CategoryPanelviews
Product LinePanelview 550
Part Number2711-K5A3L1X
Weight2.56 lbs (1.16 kg)
SeriesA, B, C, D, E, F, G, H
Backlight100,000 hr LED backlight life
Operator InputKeypad
Display TypeMonochrome LCD blue mode display
Display Area120 x 60 mm (4.75 x 2.38 in.)
Resolution256 x 128
Keypad Function Keys10 function keys (F1…F10)
Integrated Memory170 KB application runtime; 240 KB nonvolatile memory
Integrated PortsDH485; RS232 (Printer)
Input Voltage Range18-32VDC
Nominal Input Supply24VDC
EnclosureNEMA Type 12/13, 4X (Indoor use only), IP54, IP65
Status IndicatorsCOMM: Green Fault: Red
Display Size5.5 in.
Display ColorMonochrome LCD blue mode
Input TypeKeypad (F1-F10)
CommunicationDH-485 Communication and RS-232 Printer Port
Input Power24V DC
Memory170 KB application runtime
Communication Cable1747-C10
View as PDF
Request a Repair

The 2711-K5A3L1X is an operator terminal from Allen Bradley's 550 Panelview series, engineered to facilitate monitoring and control in industrial environments. The display measures 5.5 inches and utilizes a monochrome LCD blue mode for enhanced visibility. With a resolution of 256 x 128 pixels, it allows for clear graphical presentations. This terminal supports a durable LED backlight, rated for a lifespan of 100,000 hours, offering sustainable performance.

User interaction is facilitated through a keypad input comprising ten function keys (F1-F10), which enhances operational efficiency. It operates on an input voltage of 24V DC, within a permissible range of 18-32V DC. The integrated memory structure consists of 170 KB dedicated to application runtime, along with 240 KB of nonvolatile memory, ensuring adequate space for applications and configurations.

For effective data communication, the 2711-K5A3L1X includes DH485 and RS-232 printer ports, enabling compatibility with diverse systems. The enclosure meets NEMA Type 12/13, 4X standards for indoor use, as well as IP54 and IP65 ratings, ensuring protection against dust and water. Weighing 1.2 kg (2.7 lb), the terminal has compact dimensions of 167 mm in height, 266 mm in width, and 106 mm in depth. Status indicators are also integrated, with green lights denoting communication and red lights signaling faults, assisting in operational oversight.
