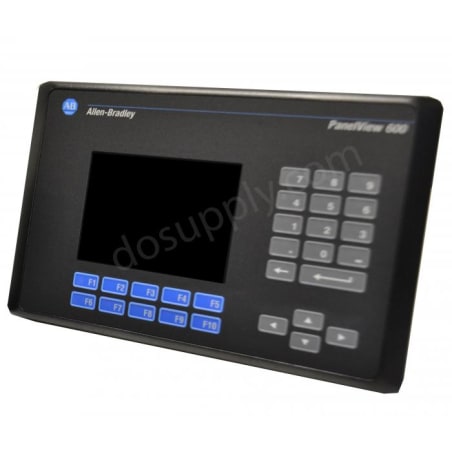

Allen Bradley Panelview 600 2711-K6C3L1X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711-K6C3L1X

|
Need a Specific Revision?

The Allen Bradley 2711-K6C3L1X, part of the Panelview 600 series, is a compact operator interface designed primarily for indoor applications. It features a vibrant 5-inch color active matrix TFT display with a resolution of 320 x 234 pixels.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711-K6C3L1X

ManufacturerAllen Bradley
CategoryPanelviews
Product LinePanelview 600
Part Number2711-K6C3L1X
Weight8.00 lbs (3.63 kg)
SeriesA, B, C, D, E, F, G, H, I, J, K, and L
Backlight50,000 hr. 1/2 life at 25 °C (77 °F)
Display TypeColor active matrix TFT
Display Area115 x 86 mm (4.54 x 3.4 in.)
Resolution320 x 234
Keypad function keys10 function keys (F1…F10)
Integrated memory240K bytes (application screens)
Integrated portsDH485; RS232 (Printer)
Input Voltage range18-32VDC
Nominal Input supply24VDC
EnclosureNEMA Type 12/13, 4X (Indoor use only), IP54, IP65
Status indicatorsCOMM: Green Fault: Red
Display Size5 in.
Display ColorColor
Input TypeKeypad
CommunicationDH-485 and RS-232 Printer
Input Power18-32 VDC
Memory240 KB
Communication Cable1747-UIC
View as PDF
Request a Repair

The model 2711-K6C3L1X from Allen Bradley represents a unit from the Panelview 600 series, tailored for use in various industrial environments. This interface sports a reliable backlight that lasts up to 50,000 hours at an ambient temperature of 25 °C (77 °F), ensuring long-term usability. The color active matrix TFT display has dimensions of 4.54 x 3.4 inches (115 x 86 mm) and offers a resolution of 320 x 234, allowing for clear visuals.

Communication capabilities include DH485 and RS232, enabling easy integration with existing systems. The front panel includes 10 function keys, which provide accessible controls for operators. It is equipped with 240K bytes of integrated memory, sufficient for managing application screens. Its enclosure meets NEMA Type 12/13 and IP54/IP65 standards, confirming its suitability for indoor use while offering protection against dust and splashes. The unit's weight is approximately 2 kg (4.4 lb), and its dimensions measure 192 mm in height, 290 mm in width, and 116 mm in depth.

The interface operates within an input voltage spectrum of 18-32 VDC and predominantly utilizes a 24 VDC nominal supply. Status indicators enhance usability, showing communication status in green and fault conditions in red. This model is compatible with various series, including A through L, thus enhancing its versatility within different application frameworks, making it a resourceful component for HMI solutions in manufacturing and process control settings.
