2711-T6C15L1

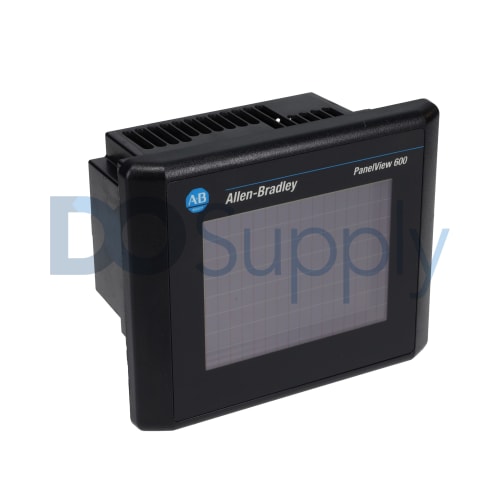

The Allen-Bradley 2711-T6C15L1 is a PanelView 600 Standard Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 6-inch colored display with built-in ControlNet communication and RS232 Printer interface. It has an analog resistive touchscreen operator interface.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 2711-T6C15L1
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | PanelView 600 Standard Operator Terminals |
| Product Line | Panelview 600 |
| Part Number | 2711-T6C15L1 |
| UPC | 611320217810 |
| Weight | 2.44 lbs (1.11 kg) |
| Backlight | Field replaceable 50,000 hr 1/2 life at 25 °C (77 °F) |
| Input Type | Touch |
| Product Family | PanelView Standard Terminals |
| Display Type | Active Matrix TFT with Cold Cathode Fluorescent (CCF) Backlight |
| Display Area | 115 x 87 mm (4.54 x 3.43 in.) |
| Resolution | 320 x 240 |
| Touchscreen | 128 (16 columns x 8 rows) |
| Touch Cell size | 20 x 30 pixels |
| Application memory | 190 KB application runtime 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication ports | ControlNet; RS232 (printer) |
| Input Voltage range | 18…32V DC (24V DC nominal supply) |
| Operating Temperature | 0…55 ° C (32…131 ° F) |
| Heat Dissipation | 24 W max (1.0 A at 24V DC) |
| Display Size | 5 in. |
| Display Color | Color |
| Communication | ControlNet and RS-232 Printer |
| Input Power | 18-32 VDC |
| Memory | 240 KB |
| Communication Cable | 2711-NC13 |
| Series | A, B, C, D, E, F, G, H, I, J, K, and L |
| Product Lifecycle Status* | Discontinued/Obsolete |
* The Allen Bradley 2711-T6C15L1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-T6C15L1 units instead of migration.
The 2711-T6C15L1 is a PanelView 600 color terminal. This visualization device from Allen-Bradley allows creation of a centralized monitoring and control area of one or more machine or process with the use of the embedded graphic library and templates. This operator terminal is provided with a colored screen with embedded touch cells and built-in communication ports, allowing monitoring, interaction and data integration, respectively.
The 2711-T6C15L1 has a display type of Active Matrix Thin-Film Resistor (TFT) with Cold Cathode Fluorescent (CCF) Backlight with screen size of 5.5 inches, resolution 320 x 234 pixels and display area of 115 x 86 mm (4.54 x 3.4 in.). It has a total of 128 Touch cells with each individual cell measuring 20 x 29 pixels. The embedded ControlNet communication port allows this operator terminal to communicate over long distanced with the use of an RG6 coaxial cable as physical layer. It can be used with one or more controllers, enabling control of a single or more process or machine.
It is also provided with test and debug functionalities that contributes to faster development and efficient engineering.
This supply voltage requirement of the 2711-T6C15L1 is 18-32VDC with nominal value of 24VDC. It has a power consumption of 24 W max. (1.0A @ 24V DC) with heat dissipation of 32 Watts (107 BTU/HR). The operating temperature requirement of this operator terminal is 0…55 ° C (32…131 ° F) with an operating vibration and shock of 15 g/ and 2 g up to 2,000 Hz respectively.
The user is able to control the HMI using the Touchscreen to input information and data. This unit is powered using 18-32 VDC power with embedded internal memory of 240 KB application runtime.
The ControlNet terminals can connect to a single or multiple controllers on a ControlNet network. They support scheduled and unscheduled access to controller data They also support redundant cabling. The ControlNet terminals support symbolic CIP addressing when communicating to a ControlLogix system. Every terminal features a Network Access port for local access to the ControlNet network.
| Revision Part # | Also known as | |
|---|---|---|
| 2711-T6C15L1 Ser A | 2711-T6C15L1/A, Series A, Rev A | |
| 2711-T6C15L1 Ser B | 2711-T6C15L1/B, Series B, Rev B | |
| 2711-T6C15L1X | 2711-T6C15L1/X, Series X, Rev X | |
