2711-K9A16L1

Description:  Panelview 900 RS-232 (DF1) Communication and RS-232 Printer/Download Port 24 VDC Powered

Available Now

Request a quote for 2711-K9A16L1
Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the 2711-K9A16L1 in 3-5 days.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

Phone

1-800-730-0292

International

919-205-4392

2711-K9A16L1 Product Details

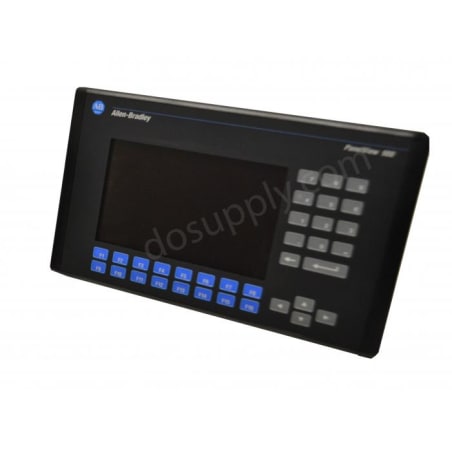

The discontinued Allen Bradley Panelview 900 2711-K9A16L1 is an operator terminal that enables the user to interface with a machine by using Panelbuilder 32 software and an RS-232 (DF1) and RS-232 Printer/Download communication port with a 2711-NC14 communication cable(s). The internal memory is 1008 KB. The internal backlight is not replaceable. The approximate shipping weight and dimensions are 8 lbs. and 18 x 14 x 8 in. The most common series are Series A, B, C, D, E, and F and the most common firmware include versions 1.00-4.48. The RS-232 (DH-485 protocol) Terminal connects to MicroLogix and SLC 500 controllers using DH-485 protocol. The point-to-point configuration provides a separate connection for high-priority data.

The Allen-Bradley 2711-K9A16L1 Terminal is a display device that provides an interface solution for monitoring industrial systems. This 9-inch monochromatic DC-rated PV900M is a member of the Bulletin 2711 PanelView Series of operator terminals. The 2711-K9A16L1 allows users to enter data via the keypad located on the right side of the AC plasma-type screen. The 14 data-input keys include 10 numeric (0-9) keys and plus, minus, enter, backspace, and decimal point keys. It also features a set of user-defined function keys from F1 to F16 and cursor keys.
The 2711-K9A16L1 Interface terminal runs on a 24V DC power source. It has a peak power consumption of 58 W (2.5 A) and supply voltage ranging between 18 and 30V DC. It has an RS-232 Printer Port that connects to printers supporting IBM enhanced character set. Its RS-232 (DF1) communication port provides connectivity with a MicroLogix, PLC, or SLC controller. The 2711-K9A16L1 requires a Windows program known as the PanelBuilder32 software to develop applications for the PanelView terminal.
The 2711-K9A16L1 ships with a full-size template for marking accurate cutout dimensions. If using a memory card retainer, allow enough clearance at the back of the terminal to make loading the memory card possible. Make sure to position the terminal sealing gasket properly to make a complete compression type seal. For optimal performance and product life, the operating temperature should not exceed 131 °F with a relative humidity of 5-85% at 32-86 ° F.

Technical specifications:
Manufacturer:Rockwell Automation
Part Number/Catalog No.:2711-K9A16L1
Product Line:Panelview 900
Display Size:9 in.
Display Color:Monochrome
Input Type:Keypad
Communication:RS-232 (DF1) and RS-232 Printer/Download
Input Power:24 VDC
Software:Panelbuilder 32
Memory:1008K bytes
Backlight:Non-replaceable
Communication Cable:2711-NC14
Shipping Weight:8 lbs.
Shipping Dimensions:18 x 14 x 8 in
Series :A, B, C, D, E, F
Firmware:1.00-4.48
