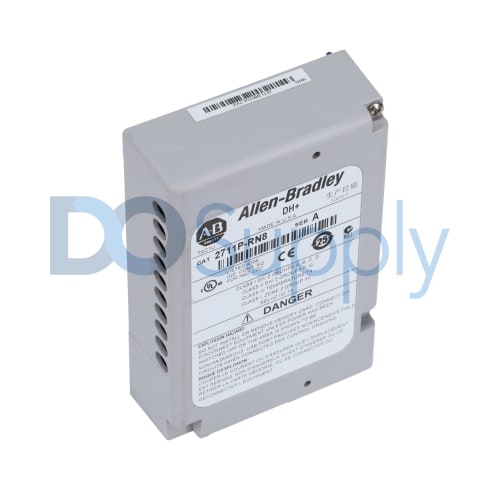

2711P-RN8

The 2711P-RN8 is a communication module from Allen Bradley designed to enhance connectivity for the Panelview Plus series. This device primarily uses the DH+ (Data Highway Plus) communication protocol, enabling it to manage data efficiently within an automation environment. It is configured with a module edge connector for straightforward installation, facilitating a plug-in mounting design.

Operating at a power voltage of 24 V DC, this module can function effectively within a backplane power range from 18 to 32 V DC. It supports baud rates up to 57.6k, ensuring a rapid communication rate suitable for demanding tasks. Status LEDs provide helpful indications, allowing users to monitor operational conditions easily. The cable gauge is set at 20 AWG tinned copper, ensuring durability and efficiency in power handling.

In terms of environmental resilience, the 2711P-RN8 can withstand a shock load of up to 15 G and has a vibration tolerance of 1 G, making it applicable in dynamic industrial settings. Furthermore, it operates efficiently at altitudes reaching 2000 meters, allowing it to be used in various geographical locations. This module maintains operational effectiveness in a wide range of relative humidity, from 5% to 95% non-condensing, and in a temperature span of 0 °C to +55 °C. Overall, the 2711P-RN8 is crafted to offer reliable performance and solid communication capabilities for complex automation systems.
