2711P-B6M20D | Allen Bradley Panelview Plus 600

×

2711P-B6M20D

Rated 4.2 with 10 reviews
About | Product Specifications

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.


credit cards accepted
better business bureau

2711P-B6M20D

Description: The 2711P-B6M20D operator interface terminal has been designed and manufactured by Allen-Bradley/Rockwell Automation in the Panelview Plus 600 series. Its 6-inch screen is a touchscreen and display screen, but it can only display data in monochrome grayscale graphics. The 2711P-B6M20D operator interface terminal comes with both a touchscreen and keypad for input. It uses a 24 Volts DC rated power supply. The 2711P-B6M20D operator interface terminal has an operating temperature range from 0 to 55 degrees Celsius or 32 to 131 degrees Fahrenheit.
Available Now
Request a quote for 2711P-B6M20D

Description: The 2711P-B6M20D operator interface terminal has been designed and manufactured by Allen-Bradley/Rockwell Automation in the Panelview Plus 600 series. Its 6-inch screen is a touchscreen and display screen, but it can only display data in monochrome grayscale graphics. The 2711P-B6M20D operator interface terminal comes with both a touchscreen and keypad for input. It uses a 24 Volts DC rated power supply. The 2711P-B6M20D operator interface terminal has an operating temperature range from 0 to 55 degrees Celsius or 32 to 131 degrees Fahrenheit.
About | Products Specs

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 2711P-B6M20D.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.2 with 10 reviews

    Technical Specifications for 2711P-B6M20D

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-B6M20D
SeriesPanelView Plus 600
Module TypeOperator Interface Terminal
Input TypeKeypad/Touchscreen
Power Supply24 Volts DC
CommunicationRS-232, USB, 2 Ethernet ports
Display5.7-inch Monochrome
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711P-B6M20D has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-B6M20D units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-B6M20D
SeriesPanelView Plus 600
Module TypeOperator Interface Terminal
Input TypeKeypad/Touchscreen
Power Supply24 Volts DC
CommunicationRS-232, USB, 2 Ethernet ports
Display5.7-inch Monochrome
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711P-B6M20D has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-B6M20D units instead of migration.

s

About 2711P-B6M20D

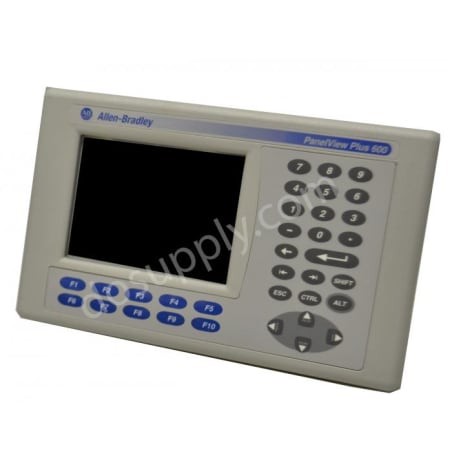

The Allen-Bradley 2711P-B6M20D PanelView 600 Plus is an electronic device that lets users control, monitor, and display machine functions, status, and modes graphically. Through its Human Interface Module (HIM), users can easily check and regulate the machine’s function. The 2711P-B6M20D is an operator interface module with a keypad and touch inputs. Information can be inputted through the 10 function keys and the numeric and navigation keys and the 5.7-inch touchscreen display input. The touchscreen is an analog resistive screen (it can withstand an operational force of up to 110G), it measures 111mm x 84mm (4.37in x 3.3in) in display dimension, and it has a resolution of 340 x 240 at a 32-level greyscale display.







The 2711P-B6M20D It has a backlight with a 50,000-hour half-life and 1 million presses 10-110G force actuation rating. It is a DC interface module with a 25-Watt (max.) power rating and a nominal input voltage of 24V DC. The 2711P-B6M20D is C-UL certified with a NEMA Type 12 and 13 enclosure type, and it can operate at a maximum altitude of 2000m (6561 Ft) without de-rating. Its shock rate is up to 15G when operational, at an operating temperature of 0-55 °C (32-131 °F), at 5-95% non-condensing relative humidity. The 2711P-B6M20D features a weight of 0.93Kg (2.05 lb) and total dimensions of 167mm x 266mm x 98mm (6.58in x 10.47in x 3.86in). With an RS-232 port, 2 Ethernet ports, and a USB port, 2711P-B6M20D  can connect to PCs, printers, mice, and other devices. Additionally, a communication module is attached to the 2711P-B6M20D for enhanced network and communication capability.



Technical Description of 2711P-B6M20D

5.7-in. Grayscale Kepad/Touch DC 600 Terminal

Repair Services for 2711P-B6M20D

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2711P-B6M20D. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 2711P-B6M20D

Please refer to the manual for more information about the 2711P-B6M20D such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
2711P-B6M20D Ser A
2711P-B6M20D/A, Series A, Rev A Request Quote
2711P-B6M20D Ser B
2711P-B6M20D/B, Series B, Rev B Request Quote
2711P-B6M20D Ser C
2711P-B6M20D/C, Series C, Rev C Request Quote
2711P-B6M20D Ser D
2711P-B6M20D/D, Series D, Rev D Request Quote
2711P-B6M20DX
2711P-B6M20D/X, Series X, Rev X Request Quote
Common misspellings:
  • 27l1P-B6M20D
  • 271lP-B6M20D
  • 2711P-86M20D
  • 2711P-B6M2oD
  • 2711PB6M20D

Dimensions For 2711P-B6M20D

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 2711P-B6M20D

Resolutions For 2711P-B6M20D

About

Technical Specifications for 2711P-B6M20D

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-B6M20D
SeriesPanelView Plus 600
Module TypeOperator Interface Terminal
Input TypeKeypad/Touchscreen
Power Supply24 Volts DC
CommunicationRS-232, USB, 2 Ethernet ports
Display5.7-inch Monochrome
Product Lifecycle Status*Discontinued/Obsolete
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-B6M20D
SeriesPanelView Plus 600
Module TypeOperator Interface Terminal
Input TypeKeypad/Touchscreen
Power Supply24 Volts DC
CommunicationRS-232, USB, 2 Ethernet ports
Display5.7-inch Monochrome
Product Lifecycle Status*Discontinued/Obsolete

*The Allen Bradley 2711P-B6M20D has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-B6M20D units instead of migration.

About 2711P-B6M20D

The Allen-Bradley 2711P-B6M20D PanelView 600 Plus is an electronic device that lets users control, monitor, and display machine functions, status, and modes graphically. Through its Human Interface Module (HIM), users can easily check and regulate the machine’s function. The 2711P-B6M20D is an operator interface module with a keypad and touch inputs. Information can be inputted through the 10 function keys and the numeric and navigation keys and the 5.7-inch touchscreen display input. The touchscreen is an analog resistive screen (it can withstand an operational force of up to 110G), it measures 111mm x 84mm (4.37in x 3.3in) in display dimension, and it has a resolution of 340 x 240 at a 32-level greyscale display.







The 2711P-B6M20D It has a backlight with a 50,000-hour half-life and 1 million presses 10-110G force actuation rating. It is a DC interface module with a 25-Watt (max.) power rating and a nominal input voltage of 24V DC. The 2711P-B6M20D is C-UL certified with a NEMA Type 12 and 13 enclosure type, and it can operate at a maximum altitude of 2000m (6561 Ft) without de-rating. Its shock rate is up to 15G when operational, at an operating temperature of 0-55 °C (32-131 °F), at 5-95% non-condensing relative humidity. The 2711P-B6M20D features a weight of 0.93Kg (2.05 lb) and total dimensions of 167mm x 266mm x 98mm (6.58in x 10.47in x 3.86in). With an RS-232 port, 2 Ethernet ports, and a USB port, 2711P-B6M20D  can connect to PCs, printers, mice, and other devices. Additionally, a communication module is attached to the 2711P-B6M20D for enhanced network and communication capability.



Technical Description of 2711P-B6M20D

5.7-in. Grayscale Kepad/Touch DC 600 Terminal
Repairs
Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2711P-B6M20D. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2711P-B6M20D. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions

Please refer to the manual for more information about the 2711P-B6M20D such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
2711P-B6M20D Ser A
2711P-B6M20D/A, Series A, Rev A Request Quote
2711P-B6M20D Ser B
2711P-B6M20D/B, Series B, Rev B Request Quote
2711P-B6M20D Ser C
2711P-B6M20D/C, Series C, Rev C Request Quote
2711P-B6M20D Ser D
2711P-B6M20D/D, Series D, Rev D Request Quote
2711P-B6M20DX
2711P-B6M20D/X, Series X, Rev X Request Quote

Common misspellings:
  • 27l1P-B6M20D
  • 271lP-B6M20D
  • 2711P-86M20D
  • 2711P-B6M2oD
  • 2711PB6M20D
PDF
2711P-B6M20D PDF
