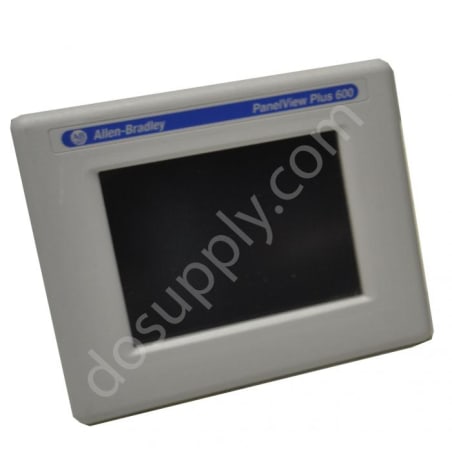

Allen Bradley Panelview Plus 600 2711P-T6M1AX

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-T6M1AX

|
Need a Specific Revision?

The 2711P-T6M1AX is part of Allen Bradley's PanelView Plus 600 series, serving as a robust operator interface module. This unit features a 5.7-inch grayscale display with a resolution of 320 x 240 pixels, designed for precision and clarity in operational tasks.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-T6M1AX

ManufacturerAllen Bradley
Product TypeOperator Interface Module
Product LinePanelview Plus 600
Part Number2711P-T6M1AX
Weight2.00 lbs (0.91 kg)
Rated Voltage85 to 264V AC
Rated Current60 A
Display TypeGrayscale Display
Display Size5.7 inches
Interface TypeEthernet, RIO, RS-232 Port
Display Resolution320 x 240
Screen TypeTouch Screen
Touch Screen TypeAnalog resistive
Min. Temperature Range0°C
Max. Temperature Range50 °C
Operating Humidity Range5 to 95% (non-condensing)
Storage Humidity Range95% (non-condensing)
Max. Altitude2000 meters above sea level
View as PDF
Request a Repair

The Allen Bradley 2711P-T6M1AX is an operator interface module dedicated to enhancing user experience in automation environments. It comes equipped with a grayscale display measuring 5.7 inches, providing essential visuals with a resolution of 320 x 240. With functionality centered around user input, this interface features an analog resistive touch screen, facilitating easy navigation and control.

This device operates efficiently with an input voltage range spanning from 85 to 264 volts AC and can handle a maximum current of 60 A. Communication options are versatile, including Ethernet, RIO, and RS-232 ports, ensuring connection flexibility with various system components.

In terms of environmental resilience, the 2711P-T6M1AX is capable of functioning within a temperature spectrum of 0°C to 50°C. Additionally, it supports relative humidity levels of 5% to 95% in normal operation, with the capability of enduring similar conditions during storage. Furthermore, this operator interface module can be installed at altitudes up to 2000 meters above sea level, making it well-suited for a variety of industrial applications.
