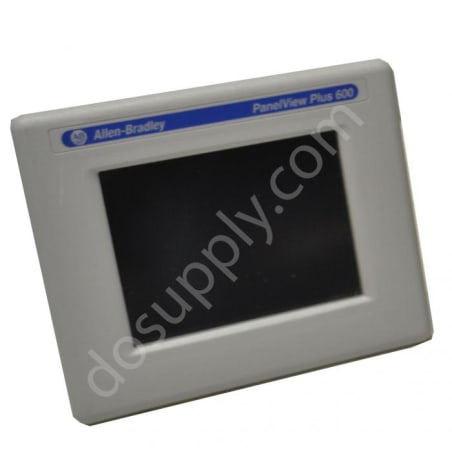

2711P-T6M3A | Allen Bradley Panelview Plus 600

×

2711P-T6M3A

Rated 4.2 with 18 reviews
About | Product Specifications | FAQ

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.


credit cards accepted
better business bureau

2711P-T6M3A

Description: The 2711P-T6M3A is a PanelView Plus Operator terminal. It is part of the Visualization product catalog that is manufactured by Allen-Bradley. It functions as a Human Machine Interface (HMI), featuring a monochrome display measuring 5.5 inches with a resolution of 320 x 240 pixels. It comes with a Touchscreen operator interface; Ethernet and RS232 communication port supporting TCP I/P and DF1 protocols, respectively; DH-485 communication interface module for DH-485 connectivity; USB ports for attachment of peripheral devices such as keyboard, mouse, and USB removable drive. This terminal operates at an input supply voltage of 85-264 VAC, 47-63 Hz.
Available Now
Request a quote for 2711P-T6M3A

Description: The 2711P-T6M3A is a PanelView Plus Operator terminal. It is part of the Visualization product catalog that is manufactured by Allen-Bradley. It functions as a Human Machine Interface (HMI), featuring a monochrome display measuring 5.5 inches with a resolution of 320 x 240 pixels. It comes with a Touchscreen operator interface; Ethernet and RS232 communication port supporting TCP I/P and DF1 protocols, respectively; DH-485 communication interface module for DH-485 connectivity; USB ports for attachment of peripheral devices such as keyboard, mouse, and USB removable drive. This terminal operates at an input supply voltage of 85-264 VAC, 47-63 Hz.
About | Products Specs | FAQ

DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the 2711P-T6M3A.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.2 with 18 reviews

    Technical Specifications for 2711P-T6M3A

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-T6M3A
Manufacturer: Rockwell Automation
SeriesPanelView Plus 600
Brand: Allen-Bradley
Module TypeOperator Interface Terminal
Product Family: PanelView Plus Terminals
Input TypeTouchscreen
Product Type: Operator Terminals
Power Supply120 Volts AC
Part Number: 2711P-T6M3A
CommunicationRS-232, USB, Ethernet, DH-485
Input Type:Touch
Display5.7-inch Monochrome
No. of Function keys Ten (10) F1-F10
Product Lifecycle Status*Discontinued/Obsolete
Real Time Clock (RTC) Battery-backed clock
Clock accuracy +/-2 minutes per month
Display Type:Grayscale passive matrix, film compensated super-twist nematic (FSTN)
Display Size5.5-inch
Display Area: 112 x 84 mm (4.4 x 3.3 in.)
Resolution: 320 x 240 pixels
Application memory: 5 MB for series A; 10 MB for Series B
Communication ports: Ethernet; RS232; USB
Communication protocolsTCP I/P; DF1;
Input Voltage range: 85-264 VAC, 47-63 Hz

*The Allen Bradley 2711P-T6M3A has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-T6M3A units instead of migration.

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-T6M3A
Manufacturer: Rockwell Automation
SeriesPanelView Plus 600
Brand: Allen-Bradley
Module TypeOperator Interface Terminal
Product Family: PanelView Plus Terminals
Input TypeTouchscreen
Product Type: Operator Terminals
Power Supply120 Volts AC
Part Number: 2711P-T6M3A
CommunicationRS-232, USB, Ethernet, DH-485
Input Type:Touch
Display5.7-inch Monochrome
No. of Function keys Ten (10) F1-F10
Product Lifecycle Status*Discontinued/Obsolete
Real Time Clock (RTC) Battery-backed clock
Clock accuracy +/-2 minutes per month
Display Type:Grayscale passive matrix, film compensated super-twist nematic (FSTN)
Display Size5.5-inch
Display Area: 112 x 84 mm (4.4 x 3.3 in.)
Resolution: 320 x 240 pixels
Application memory: 5 MB for series A; 10 MB for Series B
Communication ports: Ethernet; RS232; USB
Communication protocolsTCP I/P; DF1;
Input Voltage range: 85-264 VAC, 47-63 Hz

*The Allen Bradley 2711P-T6M3A has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-T6M3A units instead of migration.

s

About 2711P-T6M3A

The 2711P-T6M3A is part of Allen-Bradley’s PanelView Plus visualization system product catalog. This is an electronic device that is popularly termed as Human Machine Interface (HMI), sometimes also referred to as Man-Machine Interface (MMI) or Operator Interface Terminal (OIT). This is a flush-mounted device that is designed for use in a wide variety of industrial applications. The 2711P-T6M3A is commonly paired with a Programmable Logic Controller (PLC) or Programmable Automation Controller (PAC). It is especially compatible with Allen-Bradley’s PLC, SLC, and MicroLogix controller series while also supporting the more modern Micro, CompactLogix, and ControlLogix controller platforms. In addition, this HMI device is also compatible for use with 3rd party controllers provided that it has a compatible communication port that supports the same protocol as the 2711P-T6M3A. The 2711P-T6M3A is powered by an external supply voltage of 85-264 VAC, 47-63 Hz. It has a Grayscale passive matrix, film compensated super-twist nematic (FSTN) display screen that measures 5.5-inch with a display area of 112 x 84 mm (4.4 x 3.3 in.), and a resolution of 320 x 240 pixels. Operators can interact with the connected machine or process via the provided touchscreen interface, designed to be operated up to a million actuation at an actuation force of 10-110 g. For controller communication, this HMI device has an R232 and Ethernet communication port and via the additional installed DH-485 communication interface module. Supported protocols by its operator terminal are TCP I/P; DF1 and DH-485. These communication interfaces can function simultaneously without affecting other channels.

The 2711P-T6M3A is a Rockwell Automation and an Allen-Bradley PanelView Plus 600 Terminal. It has an AC input power of 85-264V AC at 47-63 Hz. This type of PanelView Plus 600 display is grayscale or color with a keypad, an analog touch screen, or a keypad/touchscreen input. This terminal has a 320 x 240 resolution. The 2711P-T6M3A has an RS-232, Ethernet, and DH-485 communication interface. It also has a USB port for connection of keyboard, mouse, printer, and removable flash drives. The Allen-Bradley 2711P-T6M3A PanelView terminal has an operating temperature of temperature 32 - 122 deg. F and a storage temperature of -13 & +158 deg. F. It measures 111 x 84 mm in dimensions.

FAQ for 2711P-T6M3A

1. What are the communication interfaces available to the 2711P-T6M3A?


The 2711P-T6M3A has RS232, Ethernet and DH-485 communication interfaces.

2. Does the 2711P-T6M3A support Windows CE operating system?


No. This operator terminal is not installed with a CE Logic module

3. What is the appropriate enclosure foo mounting of the 2711P-T6M3A?


Appropriate enclosure are NEMA Type 12, 13, 4X (Indoor use only), IP54, IP65 rated enclosures.

Technical Description of 2711P-T6M3A

The 2711P-T6M3A operator terminal from Allen-Bradley/Rockwell Automation is a basic type of PanelView Plus 600 series operator terminal. Its only control option is a 6-inch monochrome touchscreen. The 2711P-T6M3A operator terminal is AC-powered and it has a voltage rating of 120 Volts AC. The operating voltage range for this terminal is 85 to 264 Volts AC at 47 to 63 Hertz frequency. The 2711P-T6M3A operator terminal is designed to operate in a temperature range from 32 to 122 degrees Fahrenheit.

Repair Services for 2711P-T6M3A

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2711P-T6M3A. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for 2711P-T6M3A

Please refer to the manual for more information about the 2711P-T6M3A such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
2711P-T6M3A Ser A
2711P-T6M3A/A, Series A, Rev A Request Quote
2711P-T6M3AX
2711P-T6M3A/X, Series X, Rev X Request Quote
Common misspellings:
  • 27l1P-T6M3A
  • 271lP-T6M3A
  • 2711PT6M3A

Reviews for 2711P-T6M3A

Product Review

"The 2711P-T6M3A belongs to the PanelView 600 operator terminal from the larger product family of PanelView Plus 600. This operator terminal has very similar specifications compared to the 2711P-T6M20A in terms of display screen type, supply voltage requirement, and input interface. However, the 2711P-T6M3A comes with an additional communication port such as the DH-485 communication interface that is provided by the mounted communication interface module to this terminal. This added communication capability enables the terminal to communicate with more devices. " -DO Supply Tech

Dimensions For 2711P-T6M3A

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For 2711P-T6M3A

Resolutions For 2711P-T6M3A

About

Technical Specifications for 2711P-T6M3A

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-T6M3A
Manufacturer: Rockwell Automation
SeriesPanelView Plus 600
Brand: Allen-Bradley
Module TypeOperator Interface Terminal
Product Family: PanelView Plus Terminals
Input TypeTouchscreen
Product Type: Operator Terminals
Power Supply120 Volts AC
Part Number: 2711P-T6M3A
CommunicationRS-232, USB, Ethernet, DH-485
Input Type:Touch
Display5.7-inch Monochrome
No. of Function keys Ten (10) F1-F10
Product Lifecycle Status*Discontinued/Obsolete
Real Time Clock (RTC) Battery-backed clock
Clock accuracy +/-2 minutes per month
Display Type:Grayscale passive matrix, film compensated super-twist nematic (FSTN)
Display Size5.5-inch
Display Area: 112 x 84 mm (4.4 x 3.3 in.)
Resolution: 320 x 240 pixels
Application memory: 5 MB for series A; 10 MB for Series B
Communication ports: Ethernet; RS232; USB
Communication protocolsTCP I/P; DF1;
Input Voltage range: 85-264 VAC, 47-63 Hz
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-T6M3A
Manufacturer: Rockwell Automation
SeriesPanelView Plus 600
Brand: Allen-Bradley
Module TypeOperator Interface Terminal
Product Family: PanelView Plus Terminals
Input TypeTouchscreen
Product Type: Operator Terminals
Power Supply120 Volts AC
Part Number: 2711P-T6M3A
CommunicationRS-232, USB, Ethernet, DH-485
Input Type:Touch
Display5.7-inch Monochrome
No. of Function keys Ten (10) F1-F10
Product Lifecycle Status*Discontinued/Obsolete
Real Time Clock (RTC) Battery-backed clock
Clock accuracy +/-2 minutes per month
Display Type:Grayscale passive matrix, film compensated super-twist nematic (FSTN)
Display Size5.5-inch
Display Area: 112 x 84 mm (4.4 x 3.3 in.)
Resolution: 320 x 240 pixels
Application memory: 5 MB for series A; 10 MB for Series B
Communication ports: Ethernet; RS232; USB
Communication protocolsTCP I/P; DF1;
Input Voltage range: 85-264 VAC, 47-63 Hz

*The Allen Bradley 2711P-T6M3A has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-T6M3A units instead of migration.

About 2711P-T6M3A

The 2711P-T6M3A is part of Allen-Bradley’s PanelView Plus visualization system product catalog. This is an electronic device that is popularly termed as Human Machine Interface (HMI), sometimes also referred to as Man-Machine Interface (MMI) or Operator Interface Terminal (OIT). This is a flush-mounted device that is designed for use in a wide variety of industrial applications. The 2711P-T6M3A is commonly paired with a Programmable Logic Controller (PLC) or Programmable Automation Controller (PAC). It is especially compatible with Allen-Bradley’s PLC, SLC, and MicroLogix controller series while also supporting the more modern Micro, CompactLogix, and ControlLogix controller platforms. In addition, this HMI device is also compatible for use with 3rd party controllers provided that it has a compatible communication port that supports the same protocol as the 2711P-T6M3A. The 2711P-T6M3A is powered by an external supply voltage of 85-264 VAC, 47-63 Hz. It has a Grayscale passive matrix, film compensated super-twist nematic (FSTN) display screen that measures 5.5-inch with a display area of 112 x 84 mm (4.4 x 3.3 in.), and a resolution of 320 x 240 pixels. Operators can interact with the connected machine or process via the provided touchscreen interface, designed to be operated up to a million actuation at an actuation force of 10-110 g. For controller communication, this HMI device has an R232 and Ethernet communication port and via the additional installed DH-485 communication interface module. Supported protocols by its operator terminal are TCP I/P; DF1 and DH-485. These communication interfaces can function simultaneously without affecting other channels.

The 2711P-T6M3A is a Rockwell Automation and an Allen-Bradley PanelView Plus 600 Terminal. It has an AC input power of 85-264V AC at 47-63 Hz. This type of PanelView Plus 600 display is grayscale or color with a keypad, an analog touch screen, or a keypad/touchscreen input. This terminal has a 320 x 240 resolution. The 2711P-T6M3A has an RS-232, Ethernet, and DH-485 communication interface. It also has a USB port for connection of keyboard, mouse, printer, and removable flash drives. The Allen-Bradley 2711P-T6M3A PanelView terminal has an operating temperature of temperature 32 - 122 deg. F and a storage temperature of -13 & +158 deg. F. It measures 111 x 84 mm in dimensions.

FAQ for 2711P-T6M3A

1. What are the communication interfaces available to the 2711P-T6M3A?


The 2711P-T6M3A has RS232, Ethernet and DH-485 communication interfaces.

2. Does the 2711P-T6M3A support Windows CE operating system?


No. This operator terminal is not installed with a CE Logic module

3. What is the appropriate enclosure foo mounting of the 2711P-T6M3A?


Appropriate enclosure are NEMA Type 12, 13, 4X (Indoor use only), IP54, IP65 rated enclosures.

Technical Description of 2711P-T6M3A

The 2711P-T6M3A operator terminal from Allen-Bradley/Rockwell Automation is a basic type of PanelView Plus 600 series operator terminal. Its only control option is a 6-inch monochrome touchscreen. The 2711P-T6M3A operator terminal is AC-powered and it has a voltage rating of 120 Volts AC. The operating voltage range for this terminal is 85 to 264 Volts AC at 47 to 63 Hertz frequency. The 2711P-T6M3A operator terminal is designed to operate in a temperature range from 32 to 122 degrees Fahrenheit.
Repairs
Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2711P-T6M3A. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your 2711P-T6M3A. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions

Please refer to the manual for more information about the 2711P-T6M3A such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
2711P-T6M3A Ser A
2711P-T6M3A/A, Series A, Rev A Request Quote
2711P-T6M3AX
2711P-T6M3A/X, Series X, Rev X Request Quote

Common misspellings:
  • 27l1P-T6M3A
  • 271lP-T6M3A
  • 2711PT6M3A
PDF
2711P-T6M3A PDF
Reviews

Reviews for 2711P-T6M3A

Product Review

"The 2711P-T6M3A belongs to the PanelView 600 operator terminal from the larger product family of PanelView Plus 600. This operator terminal has very similar specifications compared to the 2711P-T6M20A in terms of display screen type, supply voltage requirement, and input interface. However, the 2711P-T6M3A comes with an additional communication port such as the DH-485 communication interface that is provided by the mounted communication interface module to this terminal. This added communication capability enables the terminal to communicate with more devices. " -DO Supply Tech
