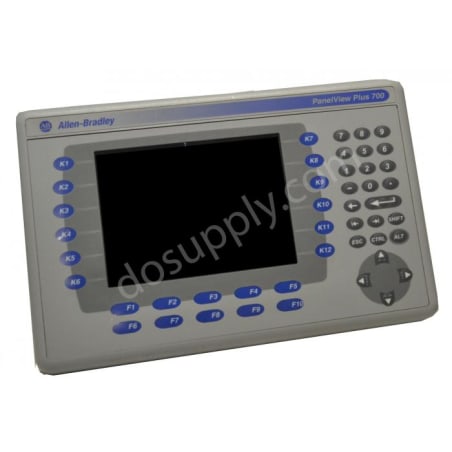

Allen Bradley Panelview Plus 700 2711P-B7C15A7X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-B7C15A7X

|
Need a Specific Revision?

The 2711P-B7C15A7X is a versatile operator terminal designed for the Allen Bradley PanelView Plus 700 series. It features a 6.5-inch color TFT touchscreen display with a resolution of 640 x 480 pixels, allowing for direct user interaction through both touchscreen and keypad inputs.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-B7C15A7X

ManufacturerAllen Bradley
Product TypeOperator Terminal
Product LinePanelview Plus 700
Part Number2711P-B7C15A7X
Weight10.00 lbs (4.54 kg)
Communication PortsCNET, ENET, RS-232, USB
Memory256 MB
Display Size6.5 in.
Display TypeColor TFT Touchscreen
Frequency50/60 Hz
BacklightLED (replaceable)
Input Voltage100–240 VAC
Logic ModuleCE Logic Module
Input TypeKeypad & Touchscreen
Display Resolution640 x 480 pixels
Power Consumption35 W (typical)
Operating Temperature0 to 50 °C
Mounting TypePanel Mount
View as PDF
Request a Repair

The Allen Bradley 2711P-B7C15A7X operator terminal is a functionality-oriented device that facilitates machine interactions in various settings. It is built around a compact 6.5-inch display that utilizes color TFT technology, providing visuals with a resolution of 640 x 480 pixels. User input is made easily accessible, allowing control through a combination of a touchscreen and keypad.

This terminal is equipped with a memory capacity of 256 MB, supporting adequate storage and processing each operational task. The unit’s communication versatility features ports for CNET, ENET, RS-232, and USB, ensuring reliable connections with various systems and devices. Power requirements are manageable, with an input voltage range that supports both 100 and 240 VAC, making it adaptable for different environments.

Designed for panel mounting, the 2711P-B7C15A7X has an operating temperature range of 0 to 50 °C, allowing it to function efficiently in suitable conditions. The device further enhances visibility through an LED backlight, which is also replaceable as needed. Weighing 4.54 kg, this operator terminal represents a balance of effective performance and essential design for optimized user experience.
