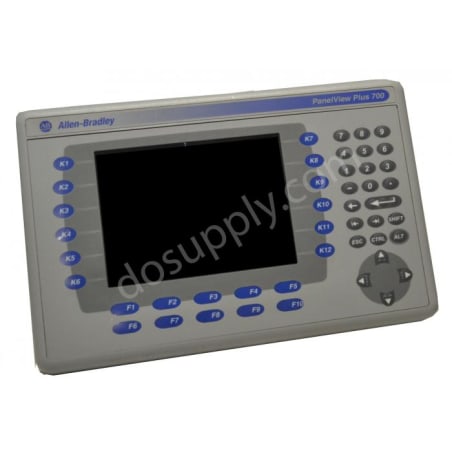

Allen Bradley Panelview Plus 700 2711P-B7C4A6X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-B7C4A6X

|
Need a Specific Revision?

The 2711P-B7C4A6X is an operator terminal from the PanelView Plus 700 series by Allen Bradley, designed for efficient user interaction. Featuring a 6.5-inch color TFT touchscreen display with a resolution of 640 x 480, this terminal supports both keypad and touch inputs, accommodating diverse application needs.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-B7C4A6X

ManufacturerAllen Bradley
Product TypeOperator Terminal
Product LinePanelview Plus 700
Part Number2711P-B7C4A6X
Weight32.00 lbs (14.51 kg)
Communication PortsEthernet, RS-232, 2 USB
Input TypeKeypad & Touchscreen
Display Size6.5 in.
Input Voltage85–264 VAC
Power Consumption35 W (typical)
Operating Temperature0 to 50 °C
Display Resolution640 x 480 pixels
Frequency50/60 Hz
Memory128 MB
Display TypeColor TFT Touchscreen
BacklightLED (replaceable)
Logic Module128 MB CE Logic Module
Mounting TypePanel Mount
Communication CableEthernet / RS-232 cables
View as PDF
Request a Repair

The Allen Bradley model 2711P-B7C4A6X belongs to the PanelView Plus 700 series, serving as an operator terminal designed for interaction in industrial settings. The unit is marked by a vibrant 6.5-inch color TFT touchscreen that allows for both touch and keypad input, giving users flexible interaction methods. With a resolution of 640 x 480 pixels, the display ensures clear visuals for process management.

This operator terminal accepts an input voltage ranging from 85 to 264 VAC, providing versatility for various electrical setups. The device typically requires a power consumption of 35 watts, making it relatively efficient for continuous operation. Operating within a temperature range of 0 to 50 °C ensures functionality in various environments.

It offers ample memory capacity with 128 MB for operational needs, equipped with a corresponding 128 MB CE logic module that enhances its performance. Connectivity is robust, featuring multiple communication ports that include Ethernet, RS-232, and two USB connections, facilitating easy integration and data exchange with other devices. The unit's replaceable LED backlight contributes to prolonged visibility and usability. Designed for panel mounting, the 2711P-B7C4A6X is well-equipped for installation in various application spaces, delivering reliable operator interface capabilities.
