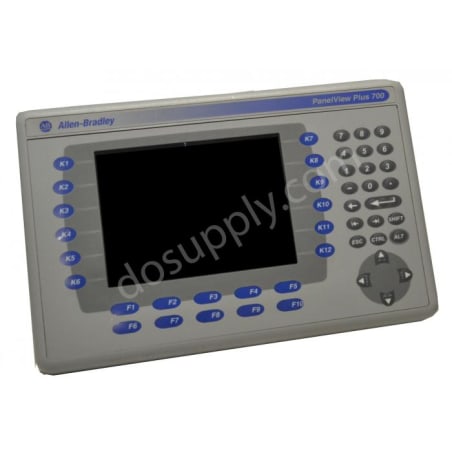

2711P-B7C4A7X
The 2711P-B7C4A7X is an operator terminal within the Allen Bradley PanelView Plus 700 series, designed for ease of interaction. It features a 6.5-inch color TFT touchscreen display with a sharp resolution of 640 x 480 pixels, providing clear visuals for data monitoring. This model supports dual input methods: keypad and touchscreen, ensuring flexibility in user operations.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for 2711P-B7C4A7X
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Operator Terminal |
| Product Line | Panelview Plus 700 |
| Part Number | 2711P-B7C4A7X |
| Weight | 32.00 lbs (14.51 kg) |
| Display Size | 6.5 in. |
| Logic Module | 256 MB |
| Backlight | LED (replaceable) |
| Display Resolution | 640 x 480 pixels |
| Communication Ports | Ethernet, RS-232 |
| Communication Cable | Ethernet / RS-232 cables |
| Memory | 256 MB |
| Mounting Type | Panel Mount |
| Display Type | Color TFT Touchscreen |
| Input Voltage | 85–264 VAC |
| Operating Temperature | 0 to 50 °C |
| Input Type | Keypad & Touchscreen |
| Frequency | 50/60 Hz |
| Power Consumption | 35 W (typical) |
The Allen Bradley 2711P-B7C4A7X represents a reliable operator terminal solution from the PanelView Plus 700 series, specifically designed for diverse industrial applications. Its display measures 6.5 inches diagonally and employs color TFT technology, delivering vibrant images and graphics at a resolution of 640 x 480 pixels. Users can interact with the terminal via either a keypad or a touchscreen, which caters to different operational preferences.
This model is equipped with a logic module that boasts 256 MB of memory, allowing for efficient performance and data handling. The backlight, utilizing LED technology, is replaceable, ensuring long-term visual clarity and durability. Operating at an input voltage range of 85 to 264 VAC, the device is suitable for a variety of electrical environments. It functions seamlessly at frequencies of either 50 or 60 Hz.
Communication capability is a strong point of the 2711P-B7C4A7X, featuring both Ethernet and RS-232 ports for flexible connectivity options. Pairing this terminal with appropriate communication cables enables integration into wider automation frameworks with ease. The panel-mounted design allows for straightforward installation in control panels. With an operating temperature range of 0 to 50 °C, it is built to endure typical industrial conditions.
Its typical power consumption is rated at 35 W, making it efficient for long-term operations. Overall, the 2711P-B7C4A7X is a well-rounded operator terminal that effectively combines user-friendly features with robust operational capabilities.
- 2711P-87C4A7X
- 2711P-B7CAA7X
- 2711P87C4A7X
- 2711PB7C4A7X
- 2711PB7CAA7X
- 271IP-B7C4A7X
- 271IPB7C4A7X
- 27I1P-B7C4A7X
- 27I1PB7C4A7X
- 27IIP-87CAA7X
- 27IIP-B7C4A7X
- 27IIP87CAA7X
- 27IIPB7C4A7X
| Size | 6.5 inch (700 color) |
|---|---|
| Input Type | Keypad/ Touch |
| Display Type | Color active-matrix TFT |
| Display Size (Diagonal) | 6.5 in. |
| Viewing Area | 132 x 99 mm (5.2 x 3.9 in.) |
| Display Resolution | 640 x 480, 18-bit color graphics |
| Typical Brightness | 300 cd/m2 (Nits) |
