2711P-B7C4D1

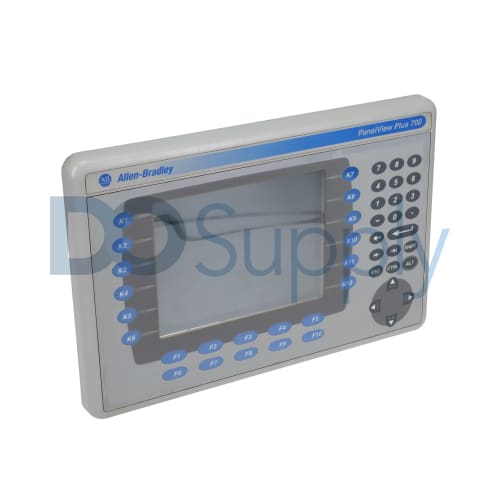

The Allen-Bradley 2711P-B7C4D1 is an PanelView Plus 700 operator terminal. This operator terminal functions as a Human Machine Interface (HMI) used for implementing centralized monitoring and control of machines and processes. This device is equipped with colored graphic display, dual input interfaces such as keypad and touchscreen interfaces and a variety of communication ports.

Specifically, the 2711P-B7C4D1 comes with a 6.5-inch color display screen with resolution of 640 x 480 pixels and display area of 132 x 99 mm (5.2 x 3.9 in.). The display is made of Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) that is installed with a backlight having an estimated operational lifespan of CCFL 50,000 hours life, min. The dual input interface such as keypad are composed of Function keys, numeric and navigation buttons with actuation rating of 1 million presses and recommended operating force of 340 g. The touchscreen input interface is made of an analog resistive touchscreen interface with 1 million presses and operating force of 10-110 g.

The 2711-B7C4D1 is installed with a variety of communication interfaces such as One (1) RS232 communication port; One (1) Ethernet communication interface and Two (2) USB ports. The RS232 ports supports DF1 protocol and typically used for point-to-point and within the panel communication. The Ethernet port is used for networked communication and supports Ethernet I/P and Common Industrial Protocol (CIP). The embedded USB ports are used primarily for connecting external input peripherals such as mouse and keyboard.

This HMI is built with variety of tools for quick configuration and short commissioning period. It has an integrated configuration mode that may be used to configure internal and runtime parameter settings of the device. Parameters such as language support, date and time, node address, communication and default application.

The 2711-B7C4D1 has built-in 32 MB Flash Memory and 64 MB Random Access Memory with power supply rating of 18 to 32VDC with nominal value of 24V dc.

The 2711P-B7C4D1 allows user to connect via the provided Ethernet and RS-232 communication port. The 2711P-B7C4D1 terminal has a 6.5-inch color active-matrix backlit display that supports a resistive touchscreen and a keypad input containing navigation, numeric, and function keys. The resolution is 640 x 480 pixels with 18-bit color graphics. The 2711P-B7C4D1 has 64 MB of RAM and 64 MB of nonvolatile memory for user storage. It weighs 1.9 kg (4.2 lb) and has a dimension of 193 x 290 x 55 mm (7.58 x 11.40 x 2.18 in. It requires an input voltage of 18 - 32V DC (24V DC nominal) and 70 W of maximum power consumption. The Ethernet and the RS-232 serial ports facilitate efficient communication with optional DH-485, DH+, and ControlNet modules. The 2711P-B7C4D1 contains 2 USB ports for connecting external devices such as keyboards. It also supports Secure Digital (SD) cards for data backup and a real-time clock for timestamping data. The 2711P-B7C4D1 can be panel-mounted with NEMA, UL, or IP-rated enclosures.
