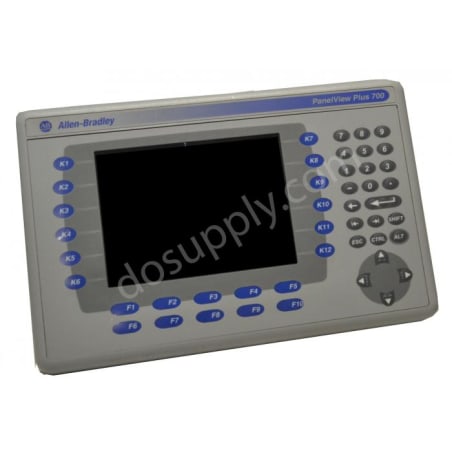

Allen Bradley Panelview Plus 700 2711P-K7C4A2X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-K7C4A2X

|
Need a Specific Revision?

The 2711P-K7C4A2X is a versatile operator terminal from Allen Bradley’s PanelView Plus 700 series. It features a 6.5-inch TFT display with a resolution of 640 x 480 pixels, facilitating user interaction through a keypad interface.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-K7C4A2X

ManufacturerAllen Bradley
Product TypeOperator Terminal
Product LinePanelview Plus 700
Part Number2711P-K7C4A2X
Weight3.81 lbs (1.73 kg)
Display Size6.5 in.
Display Resolution640 x 480 pixels
Communication PortsEthernet, RS-232, 2 USB
Power Consumption20 W (typical)
Operating Temperature0–55 °C
Display TypeColor TFT
Input Voltage AC85–264 VAC
Memory128 MB
Storage Temperature-25–70 °C
Input TypeKeypad
Nominal Voltage100–240 VAC
BacklightLED
Frequency50/60 Hz
View as PDF
Request a Repair

The Allen Bradley 2711P-K7C4A2X operates as a highly effective operator terminal. With a display size of 6.5 inches, it provides a resolution of 640 by 480 pixels. This color TFT display enhances visibility and clarity, ensuring users can interact easily with the interface. The terminal employs a keypad for input, which supports intuitive control.

In terms of connectivity, this device includes communication ports for Ethernet, RS-232, and two USB connections, allowing for various integration possibilities. The unit consumes approximately 20 W of power, ensuring energy efficiency during operation. It requires an AC input voltage within the range of 85 to 264 VAC, with a nominal operational voltage between 100 to 240 VAC.

The terminal is built to withstand operating temperatures from 0 to 55 °C, making it suitable for various environments. Additionally, it can withstand storage temperatures ranging from -25 to 70 °C. Weighing in at 1.72 kg, this terminal is compact yet capable of robust performance. The LED backlight enhances its usability in different lighting conditions. The operating frequency for this terminal is 50/60 Hz, making it versatile for multiple applications.
