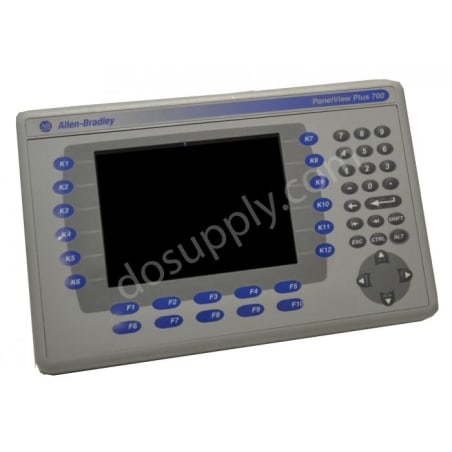

Allen Bradley Panelview Plus 700 2711P-K7C4A6X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-K7C4A6X

|
Need a Specific Revision?

The 2711P-K7C4A6X operator terminal is a part of Allen Bradley's Panelview Plus 700 series. It features a 6.5-inch color TFT display and supports a resolution of 640 x 480 pixels. This terminal includes Ethernet and RS-232 communication ports and operates with a wide AC input voltage range.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-K7C4A6X

ManufacturerAllen Bradley
Product TypeOperator Terminal
Product LinePanelview Plus 700
Part Number2711P-K7C4A6X
Weight5.50 lbs (2.49 kg)
Communication PortsEthernet, RS-232
Input Voltage AC85–264 VAC
Nominal Voltage100–240 VAC
Display Size6.5 in.
Display Resolution640 x 480 pixels
Input TypeKeypad
Display TypeColor TFT
BacklightLED
Frequency50/60 Hz
Operating Temperature0–55 °C
Storage Temperature-25–70 °C
Power Consumption20 W (typical)
Memory128 MB
View as PDF
Request a Repair

The 2711P-K7C4A6X model by Allen Bradley serves as an operator terminal. It is designed with a 6.5-inch color TFT display that offers a resolution of 640 x 480 pixels, ensuring clarity during operation. Users can interact with the device through a keypad input interface. This terminal's communication capabilities include ports for Ethernet and RS-232, facilitating effective integration with other devices.

The terminal functions with input voltages ranging from 85 to 264 VAC and nominally between 100 and 240 VAC. With a typical power consumption of 20 watts, this device is efficient. It maintains reliable operation within a temperature range from 0 to 55 °C. In contrast, its storage temperature capacity allows for a wider range, from -25 to 70 °C.

Memory capabilities of the 2711P-K7C4A6X extend to 128 MB, supporting various applications and data requirements. This unit weighs approximately 2.06 kg, allowing for straightforward mounting and installation.
