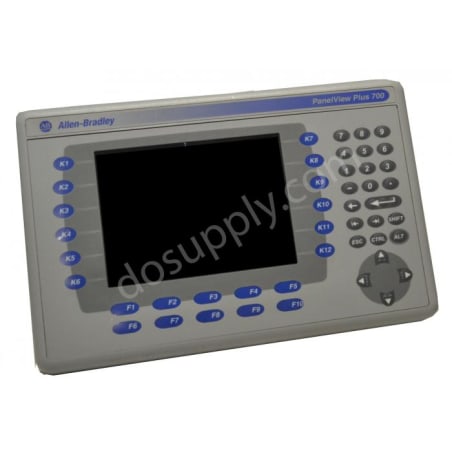

Allen Bradley Panelview Plus 700 2711P-K7C6D2

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-K7C6D2

|
Need a Specific Revision?

The 2711P-K7C6D2 operator interface terminal is a DC-powered operator interface terminal from the Allen-Bradley Panelview Plus 700 series. It can operate with 24 Volts DC of rated nominal voltage and with 18 to 32 Volts DC of rated input voltage. The 2711P-K7C6D2 operator interface terminal supports color graphics on its 6.5-inch display screen. It communicates with other devices through its DH+ and DH-485 communication ports. The 2711P-K7C6D2 operator interface terminal is a keypad-controlled terminal.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-K7C6D2

ManufacturerAllen Bradley
CategoryPanelviews
Product LinePanelview Plus 700
Part Number2711P-K7C6D2
Weight5.50 lbs (2.49 kg)
Display Size6.5 in.
Display ColorColor
Input TypeKeypad
CommunicationDH+ and DH-485
Input Power18-32 VDC
Memory128 MB
Backlight2711P-RL7C2
Communication Cable1770-CD and 1761-CBL-ASO3
SeriesSeries A, B, C, D, E, F, G
Product Lifecycle Status*Discontinued/Obsolete

* The Allen Bradley 2711P-K7C6D2 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-K7C6D2 units instead of migration.

View as PDF
Request a Repair

The discontinued Allen Bradley Panelview Plus 700 2711P-K7C6D2 is an operator terminal that enables the user to interface with their machine. This HMI has a 6.5 in. Color Display. The user is able to control the HMI using the Keypad to input information and data. This unit is powered using 18-32 VDC power. This unit has the following internal memory: 128 MB. If applicable this unit has an internal backlight replacement part number of 2711P-RL7C2. The approximate shipping weight and dimensions are 8 lbs. and 14 x 11 x 8 in. The Data Highway Plus terminals are capable of point-to-point communication with a single controller, as well as network communication with multiple controllers over an Allen-Bradley DH+ network. Direct access to controller data files minimizes ladder logic. The PC memory card interface can also be used.

Revision Part #Also known as
2711P-K7C6D2 Ser A2711P-K7C6D2/A, Series A, Rev A
2711P-K7C6D2X2711P-K7C6D2/X, Series X, Rev X
Don't see your particular revision? Contact us now.
