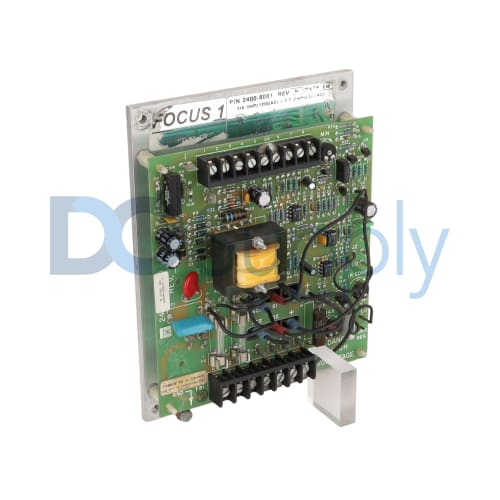

Control Techniques Focus 1 2400-8001

Product image is representative; revision or series may vary. Contact us to request a specific version.

2400-8001

|
Need a Specific Revision?

The Control Techniques 2400-8001 is a versatile DC drive that operates efficiently within a 1-phase input system. With a horsepower capacity ranging from ¼ to 2, this drive supports an input line voltage between 120 to 240 Volts AC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 2400-8001

ManufacturerControl Techniques
Product TypeDC Drive
Product LineFocus 1
Part Number2400-8001
Weight3.00 lbs (1.36 kg)
Input Phase Type1-phase input
Input Frequency50 to 60 Hertz
Input Line Voltage120 to 240 Volts AC
Input Current Rating14 Amperes (maximum)
Output Voltage Rating90 to 180 Volts DC
Horsepower Capacity¼ to 2 horsepower
Field Control Voltage Range100 to 200 Volts DC
Drive System EfficiencyTypically 86%
Control EfficiencyApproximately 98%
Ambient Operating Temperature-15 to 40°C (in a non-condensing environment)
Storage Temperature-40 to 70°C (in a non-condensing environment)
Operating Altitude3,300 feet (1,000 meters) above sea level
Humidity Tolerance95% relative humidity and in a non-condensing environment
Additional FeaturesAdjustable voltage
Request a Repair

The Control Techniques 2400-8001 is a reliable DC drive designed for diverse applications requiring precise control. This device operates on a 1-phase input with a voltage rating between 120 and 240 Volts AC. Ideal for motors ranging from ¼ to 2 horsepower, it suits a wide range of tasks in various environments.

This model features an input current capability, reaching a maximum of 14 Amperes, while its output voltage can be adjusted between 90 and 180 Volts DC. Additionally, it is equipped with a field control voltage range that spans from 100 to 200 Volts DC, enhancing its usability in different setups.

Efficiency is a strong point of this drive, achieving a typical drive system efficiency of 86% and an impressive control efficiency of roughly 98%. Its effective performance is maintained over an ambient operational temperature range from -15°C to 40°C, provided it is in a non-condensing environment. The storage temperature can drop significantly to -40°C and rise to 70°C while maintaining non-condensing conditions.

The unit is capable of functioning at altitudes up to 3,300 feet (1,000 meters), ensuring adaptability in high installations. Furthermore, it tolerates humidity levels of up to 95% in non-condensing conditions, which is essential for environments subject to varying moisture levels. With such specifications, the Control Techniques 2400-8001 DC drive stands out as a robust solution for motor control tasks.
