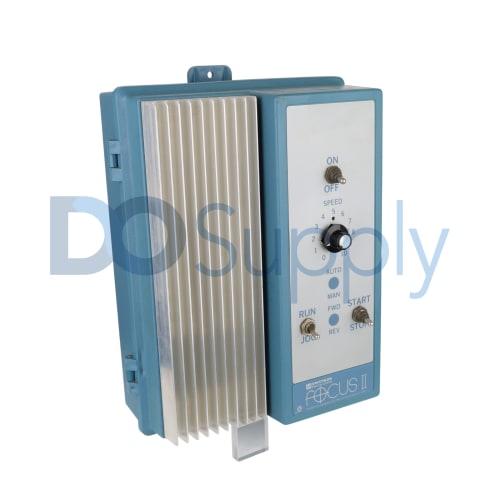

Control Techniques Focus 2 2450-8000

Product image is representative; revision or series may vary. Contact us to request a specific version.

2450-8000

|
Need a Specific Revision?

The 2450-8000 by Control Techniques is a versatile DC drive engineered for varying applications. It operates on input voltages of either 115V or 230V AC, delivering power ratings from 0.25 to 2 HP depending on the voltage level utilized.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for 2450-8000

ManufacturerControl Techniques
Product TypeDC Drive
Product LineFocus 2
Part Number2450-8000
Weight7.00 lbs (3.18 kg)
Input Voltage115/230V AC
HP at 115V AC0.25-1 HP
HP at 230V AC0.5-2 HP
Input Frequency50/60 Hz
Maximum Input Current14 A
Output Voltage90/180V DC
Maximum Output Current10 A
Field Voltage100/200V DC
Maximum Field Current1 A
Operating Temperature0°C to 40°C
Operating Humidity (Non-Condensing)80% RH max.
Storage Temperature0°C to 50°C
Storage Humidity (Non-Condensing)80% RH max.
Request a Repair

Control Techniques' 2450-8000 is classified as a DC drive that supports a flexible input voltage range of 115 to 230 volts AC. This unit effectively accommodates a power output that varies, handling 0.25 to 1 HP at 115 volts and reaching up to 2 HP at 230 volts. It incorporates an input frequency setting for both 50 and 60 Hz operations, enhancing compatibility with various systems.

In terms of current handling, the drive can manage a maximum input current of 14 amperes. It yields output voltages of 90V or 180V DC, and supports an output current capacity of up to 10 amperes. Field control capabilities include a voltage range of 100 to 200 volts DC, with the potential for a maximum field current of 1 amp.

The device is designed to function efficiently within a temperature range spanning from 0 to 40 degrees Celsius, making it suitable for standard operational environments. In humid conditions, it can withstand up to 80% relative humidity without condensation, ensuring stable performance in various settings. Additionally, storage conditions are manageable, with temperature limits from 0 to 50 degrees Celsius, alongside similar humidity tolerances.
