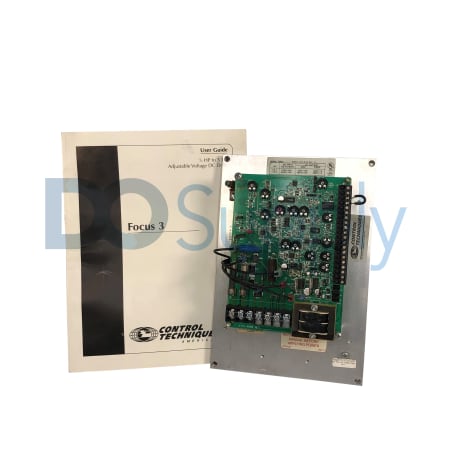

Product image is representative; revision or series may vary. Contact us to request a specific version.
F3N2C
The Control Techniques F3N2C is a drive from the FOCUS series. This drive supports AC input current up to 14 Amps and provides armature voltages of 90 VDC or 180 VDC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for F3N2C
| Manufacturer | Control Techniques |
|---|---|
| Product Type | Drive |
| Product Line | FOCUS |
| Part Number | F3N2C |
| Weight | 2.50 lbs (1.13 kg) |
| Input Current (AC) | 14 Amps |
| Output Armature Voltage (DC) | 90 VDC, 180 VDC |
| Max HP @ 90 VDC Armature | 1 HP |
| Max HP @ 180 VDC Armature | 2 HP |
| Input Phase | 1 Phase |
| Output Field Current (DC) | 1 Amps |
| Max Armature Current (DC) | 10 Amps |
| Nominal Input VAC | 120 VAC, 240 VAC |
| Output Field VDC | 100 VDC, 200 VDC |
| Regenerative | No |
| Feedback Types | Armature, Tachometer |
With a specific focus on efficiency, the Control Techniques F3N2C drives the application of electrical control systems. This model operates on an input current of up to 14 Amps in alternating current (AC). The drive is capable of outputting armature voltages of either 90 VDC or 180 VDC, making it adaptable for different operational requirements.
When set at 90 VDC, the drive supports a maximum horsepower of 1 HP. If the system is switched to utilize 180 VDC, it allows for up to 2 HP, demonstrating versatility in performance. The input phase is designed for single-phase applications, making it suitable for a variety of setups.
For additional functionality, the F3N2C provides a maximum armature current of 10 Amps and a DC output field current of 1 Amp. The voltage applied to the output field can either be 100 VDC or 200 VDC.
The nominal input voltage accommodates a range between 120 VAC and 240 VAC, allowing for flexible integration into different electrical environments. However, this drive does not support regenerative options. Feedback can be processed through armature or tachometer types, ensuring precise control and monitoring in applications.
