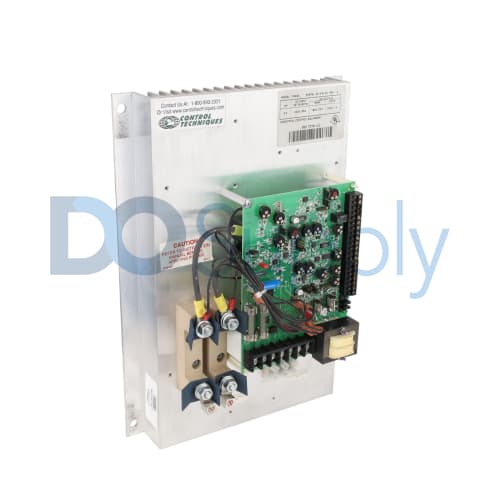

Product image is representative; revision or series may vary. Contact us to request a specific version.
F3N5C
The F3N5C model by Control Techniques is a specialized DC drive housed in a chassis. Designed for performance, it operates effectively under varying temperature conditions and supports a range of horsepower ratings.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for F3N5C
| Manufacturer | Control Techniques |
|---|---|
| Product Type | DC Drive |
| Product Line | FOCUS |
| Part Number | F3N5C |
| Weight | 4.00 lbs (1.81 kg) |
| Enclosure | Chassis |
| Storage Temperature | -40 to 70 degrees Celsius |
| Maximum Storage Humidity | 95%, non-condensing |
| Operating Temperature | 0 to 55 degrees Celsius |
| Input Voltage | 240 VAC |
| Input Current (AC) | 14 A |
| Maximum Input Current | 35 A |
| Output Field Voltage (DC) | 200 VDC |
| Horsepower Rating | 3-5 HP |
| Output Armature Voltage (DC) | 180 VDC |
| Output Field Current | 1.00 A |
The Control Techniques F3N5C is a DC drive designed for chassis installation. With an input voltage of 240 VAC, it facilitates various applications across different environments. The unit draws an input current of 14 A under normal operating conditions, with the capability to handle a maximum input current of 35 A during peak loads.
In terms of output, the drive delivers a field voltage of 200 VDC and an armature voltage rated at 180 VDC. This drive is capable of supporting motors with horsepower ratings ranging from 3 HP to 5 HP, making it suitable for varied industrial tasks. The output field current stands at 1 A, which is efficient for many applications. The F3N5C operates effectively within a temperature range of 0 to 55 degrees Celsius, ensuring reliability under typical industrial conditions.
For storage, this model demonstrates robustness, withstanding temperatures from -40 degrees Celsius to 70 degrees Celsius. It is capable of handling up to 95% maximum storage humidity, provided it remains non-condensing. Such specifications ensure that the F3N5C is resilient and can function optimally in a range of challenging environments.
