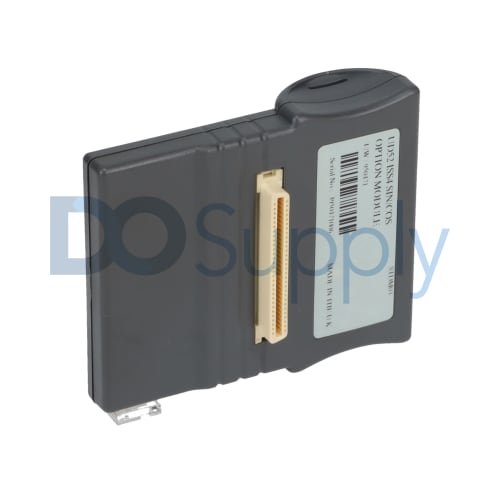

Product image is representative; revision or series may vary. Contact us to request a specific version.
UD52
The UD52 from Control Techniques is a SIN-COS option module compatible with the Unidrive Classic series. This compact module facilitates precise control of various encoders, operating seamlessly within a temperature range of -40 to 50 °C. It supports a maximum operating frequency of 102.4 kHz and offers multiple operational modes, including closed-loop vector and closed-loop servo.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for UD52
| Manufacturer | Control Techniques |
|---|---|
| Product Line | Unidrive |
| Part Number | UD52 |
| Weight | 1.00 lbs (0.45 kg) |
| Module Type | SIN-COS Option Module |
| Ambient Storage Temperature | -40 to 50 °C |
| Size Category | Small Module |
| Compatibility | Unidrive Classic |
| Compatible Encoders | 256, 512, 1024, 2048, or 4096 lines per revolution (Stegmann SCS60, SCM60, SCS70, SCM70) |
| Maximum Operating Frequency (Quadrature) | 102.4 kHz (3000RPM with a 2048-line encoder) |
| Operating Modes | Closed-loop vector, closed-loop servo |
| Connection | 16-way screw-terminal block |
| Input/Output Voltage Type | Differential voltage |
| Signal Level | 1.1V peak-to-peak |
| Maximum Input Frequency | 105 kHz |
| Absolute Maximum Applied Voltage | ±4V |
| Input Resistance | 1kΩ ±5% (to 0V) |
| Encoder Supply Voltage | 5.15V or 8V DC |
| Maximum Output Current | 300mA |
The Control Techniques UD52 represents a SIN-COS option module tailored for the Unidrive Classic series. This specific module is compact, making it suitable for installations where space is at a premium. Its ability to handle ambient storage temperatures ranging from -40 to 50 °C adds to its versatility in diverse settings.
With compatibility for encoders that provide various resolutions, including 256, 512, 1024, 2048, and 4096 lines per revolution, the UD52 ensures effective communication and operations in various application scenarios. It can operate at a maximum frequency of 102.4 kHz, allowing it to process signals from 2048-line encoders effectively while managing a rotational speed of up to 3000 RPM.
The operating modes of the UD52 encompass closed-loop vector and closed-loop servo, giving it flexibility in control strategies. Connection to the module is accomplished via a 16-way screw-terminal block, facilitating straightforward installation.
Moreover, its input and output voltages operate on a differential voltage basis, with a signal level maintained at 1.1V peak-to-peak. The maximum frequency input capability is set at 105 kHz, assuring high-speed signal processing. The module allows an absolute maximum applied voltage of ±4V, supporting the expected electrical ratings effectively.
With an input resistance of 1 kΩ ±5% to 0V, the UD52 ensures reliable performance during operation. It provides a supply voltage for encoders of 5.15V or 8V DC, accommodating various encoder requirements. The maximum output current is specified at 300mA, offering adequate power for functioning while ensuring dependability in measurement and control applications.
