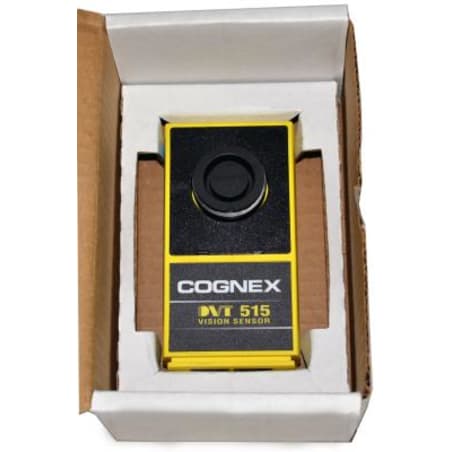

DVT 515M
DVT 515M, a SmartImage Vision Sensor developed by DVT Cognex, combines advanced imaging capabilities with efficient performance. The sensor features a resolution of 640 × 480 pixels, utilizing a CMOS image sensor to produce high-quality grayscale images.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for DVT 515M
| Manufacturer | DVT Cognex Vision |
|---|---|
| Product Type | SmartImage Vision Sensor |
| Product Line | DVT Cognex |
| Part Number | DVT 515M |
| Resolution | 640 × 480 px |
| Image Type | Grayscale |
| Image Sensor | CMOS |
| Processor | Standard Intellect CPU |
| Memory (RAM) | 64 MB |
| Ethernet Interface | Fast Ethernet |
| Shutter Type | Electronic |
| Flash Memory | 16 MB |
| RJ-45 Port | Power + I/O connections |
| Power Consumption | 5 W nominal |
| Digital I/O | Supports external I/O cable |
| Mounting | 4 × M4 threaded holes |
| Power Supply | 24 V DC |
The DVT 515M model from DVT Cognex is engineered as a SmartImage Vision Sensor, delivering precise imaging at a resolution of 640 × 480 pixels. This device employs a CMOS image sensor, providing high-fidelity grayscale images suitable for various applications.
At the heart of the sensor lies the Standard Intellect CPU, supported by 64 MB of RAM and 16 MB of flash memory, ensuring effective data processing and storage. Communication is facilitated through a Fast Ethernet interface, allowing rapid data transmission.
The electronic shutter ensures versatility in capturing images, while power is managed efficiently with a nominal consumption of 5 watts. The unit is powered by a 24 V DC supply, making it adaptable to different setups.
Connectivity options are enhanced with an RJ-45 port, which provides both power and I/O connections. Additionally, the DVT 515M supports external I/O cables, allowing for expanded functionalities in automation environments.
For installation, the sensor is easy to mount using 4 M4 threaded holes, providing flexibility in positioning based on user requirements.
