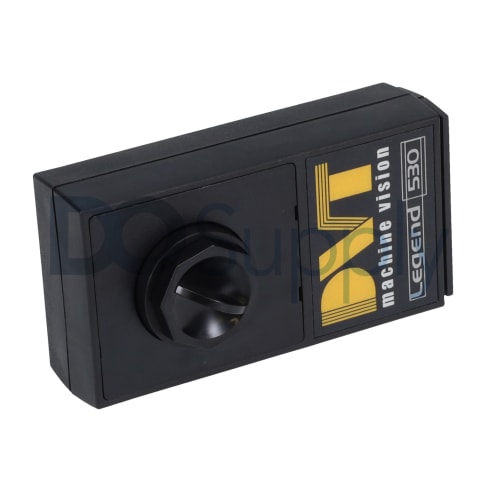

DVT Cognex Vision DVT Cognex DVT 530M

Product image is representative; revision or series may vary. Contact us to request a specific version.

DVT 530M

|
Need a Specific Revision?

The DVT 530M from DVT Cognex is a grayscale vision sensor featuring a CCD image sensor. It operates at a resolution of 640 x 480 pixels and utilizes a global shutter for capturing images.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for DVT 530M

ManufacturerDVT Cognex Vision
Product TypeVision Sensor
Product LineDVT Cognex
Part NumberDVT 530M
Image SensorCCD
Image TypeGrayscale
Resolution640 × 480 px
MountingCS mount with adapter
CCD Format1/3 inch
EthernetRJ-45, 10/100 Mbps
Digital I/O8 configurable
Shutter TypeGlobal
Network ProtocolsTCP/IP, UDP/IP
I/O Current1.5 mA / 24 V
CommunicationPC and network connectivity
Power Supply24 V DC
Request a Repair

The DVT 530M vision sensor, developed by DVT Cognex, utilizes a high-quality CCD image sensor for capturing images in grayscale format. Operating at a resolution of 640 x 480 pixels, this sensor is capable of delivering clear and detailed imagery for various applications. It features a global shutter mechanism, which allows it to freeze fast-moving subjects without distortion.

Designed for ease of installation, the DVT 530M mounts using a CS mount with an adapter, making it compatible with a range of setups. It also integrates with eight configurable digital input/output channels, providing flexibility in communication with other devices. Ethernet connectivity is enabled via an RJ-45 port supporting data transmission speeds of 10/100 Mbps.

For network communications, this sensor supports both TCP/IP and UDP/IP protocols, facilitating easy integration into existing networking environments. The I/O current is rated at 1.5 mA, and the device operates on a power supply of 24 V DC. The DVT 530M is suitable for applications requiring reliable vision processing and connectivity with PC systems and networks.
