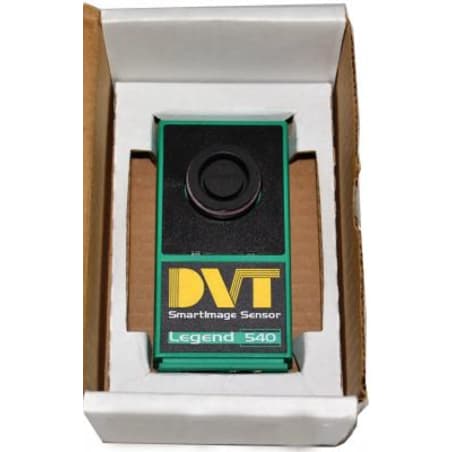

DVT Cognex Vision DVT Cognex DVT 540M

Product image is representative; revision or series may vary. Contact us to request a specific version.

DVT 540M

|
Need a Specific Revision?

The DVT 540M is a vision sensor from the DVT Cognex series, featuring a CCD image sensor that captures grayscale images at a resolution of 640 × 480 pixels. It requires a 24 V DC power supply and operates efficiently with a current consumption ranging from 210 to 300 mA.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for DVT 540M

ManufacturerDVT Cognex Vision
Product TypeVision Sensor
Product LineDVT Cognex
Part NumberDVT 540M
Image SensorCCD
Image TypeGrayscale
RAM64 MB
Power Supply24 V DC
Resolution640 × 480 px
Flash Memory16 MB
Current Consumption210 – 300 mA
CCD Size4.8 × 3.8 mm
Shutter TypeElectronic
CCD Format1/3 inch
Mounting4 × M4 threaded holes
Mount Depth7.9 mm
Request a Repair

The DVT 540M vision sensor is a precision measurement device designed to operate with a 24 V DC power input. It incorporates a CCD image sensor, effective for capturing images in grayscale with a resolution of 640 × 480 pixels. With a current draw of between 210 and 300 mA, the sensor is efficient for continuous operation.

The internal architecture includes 64 MB of RAM, allowing substantial data handling for image processing. Additionally, it is equipped with 16 MB of flash memory for storing essential parameters and settings. The sensor features an electronic shutter system, ensuring high accuracy during image capture. Having a CCD size of 4.8 × 3.8 mm and conforming to a 1/3 inch format, it is tailored for various imaging applications.

Furthermore, installation is streamlined with four M4 threaded holes provided for mounting, accommodating a depth of 7.9 mm. This design facilitates easy integration into existing systems, enhancing operational flexibility in industrial and automation environments.
