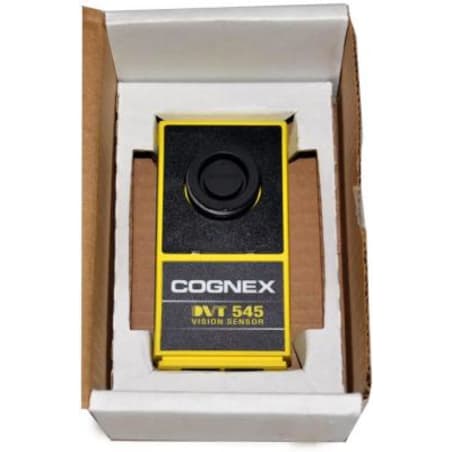

Product image is representative; revision or series may vary. Contact us to request a specific version.
DVT 545
The DVT 545 model from DVT Cognex is a grayscale vision sensor designed for precise imaging tasks. It operates on a power supply of 24 V DC and captures images in grayscale at a resolution of 640 × 480 pixels.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for DVT 545
| Manufacturer | DVT Cognex Vision |
|---|---|
| Product Type | Grayscale Vision Sensor |
| Product Line | DVT Cognex |
| Part Number | DVT 545 |
| Power Supply | 24 V DC |
| Image Type | Grayscale |
| Field of View | 0.33 ft |
| Resolution | 640 × 480 px |
| Image Sensor | CCD |
| Mounting | 4 × M4 threaded holes |
| Processing Speed | 4× previous model |
| RAM | 64 MB |
| Current Rating | 300 mA |
| I/O Channels | 8 configurable |
| Anti-Blooming | Yes |
| Flash Memory | 16 MB |
| Input Type | NPN current sinking |
| Output Type | PNP current sourcing |
The DVT 545 from DVT Cognex is a grayscale vision sensor engineered for specific applications requiring efficient image processing. It operates on a nominal power supply of 24 V DC and captures images in grayscale, presenting a resolution of 640 × 480 pixels. The sensor's compact field of view spans 0.33 feet, standing out for its effectiveness in various imaging tasks.
Incorporating a CCD image sensor, the DVT 545 is designed for robustness in imaging capabilities. It delivers enhanced processing speed, functioning at up to four times the speed of its earlier iteration. With 64 MB of RAM, it efficiently handles data while storing up to 16 MB in flash memory for optimal performance.
The device supports versatile mounting options, equipped with four M4 threaded holes for secure installation. It features eight configurable I/O channels for flexible connectivity. Moreover, it utilizes NPN current sinking as its input type and PNP current sourcing as its output type, allowing for seamless integration into different systems. Its current rating is set to 300 mA, ensuring dependable operation for varied applications. With anti-blooming functionality, this sensor provides enhanced imaging quality, making it suitable for challenging lighting conditions.
