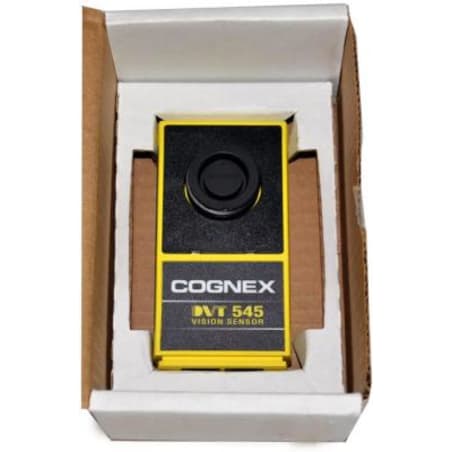

DVT 545CW
The DVT 545CW from DVT Cognex is an advanced color vision sensor that utilizes a high-detail pixel array and a CCD image sensor for enhanced image capture. Its resolution of 1280 × 1024 pixels ensures superior color imaging, powered by a 24 V DC supply.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for DVT 545CW
| Manufacturer | DVT Cognex Vision |
|---|---|
| Product Type | Color Vision Sensor |
| Product Line | DVT Cognex |
| Part Number | DVT 545CW |
| Pixel Array | High-detail |
| Image Sensor | CCD |
| Power Supply | 24 V DC |
| Image Type | Color |
| Current Rating | 210 mA |
| Resolution | 1280 × 1024 px |
| Networking | Ethernet RJ45 & RS232 |
| Processing Speed | High-speed |
| Input Type | NPN current sinking |
| Output Type | PNP current sourcing |
| Mounting | 4 × M4 threaded holes |
| I/O Channels | 8 configurable |
The DVT 545CW represents a sophisticated color vision sensor offering reliable performance in various applications. Equipped with a high-detail pixel array, it captures images through a CCD sensor that renders them in full color. Operating on a power supply of 24 V DC, this device has a current rating of 210 mA, making it efficient for industrial uses.
Resolution for this sensor registers at 1280 × 1024 px, ensuring that images are captured in fine detail. Its high-speed processing allows for swift image analysis, accommodating applications requiring timely evaluations. In terms of connectivity, the DVT 545CW comes with options for Ethernet RJ45 and RS232, providing flexibility in networking setups.
This sensor accepts NPN current sinking input while delivering PNP current sourcing output, ensuring compatibility with various control systems. For mounting purposes, it features four M4 threaded holes, making installation straightforward. With 8 configurable I/O channels, this sensor can be tailored to specific application needs, enhancing its versatility.
