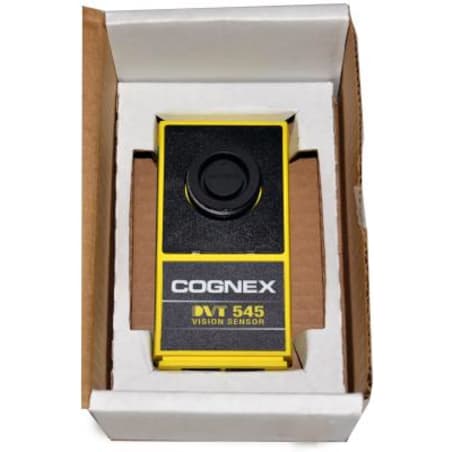

Product image is representative; revision or series may vary. Contact us to request a specific version.
DVT 545M
The DVT 545M, a high-speed vision sensor from DVT Cognex, is engineered for efficient visual inspection processes. Operating with a power supply of 24 V DC, this device features an image sensor based on CCD technology and offers a resolution of 640 × 480 pixels.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for DVT 545M
| Manufacturer | DVT Cognex Vision |
|---|---|
| Product Type | High-Speed Vision Sensor |
| Product Line | DVT Cognex |
| Part Number | DVT 545M |
| Image Sensor | CCD |
| Power Supply | 24 V DC |
| Networking | RJ-45 10/100 Mbps Ethernet |
| I/O Channels | 8 configurable |
| Image Type | Grayscale |
| Current Rating | 300 mA |
| Mounting | 4 × M4 threaded holes |
| Input Type | NPN current sinking |
| Certification | CE |
| Resolution | 640 × 480 px |
| Processing Speed | High-speed |
| Lens Type | Standard CS mount, C mount optional |
| Output Type | PNP current sourcing |
The DVT 545M from DVT Cognex represents a sophisticated high-speed vision sensor designed to enhance visual inspection functionality in various applications. It utilizes a CCD image sensor that captures images with a resolution of 640 × 480 pixels, ensuring clear detail in visual data. The power supply requirement for this sensor is 24 V DC, making it compatible with common industrial standards.
Networking capabilities are facilitated through an RJ-45 connector that operates at Ethernet speeds of 10/100 Mbps, allowing for robust data transmission. Configurable I/O channels total eight, offering users flexibility for different system integrations and control options. The sensor operates with a grayscale image type, tailored for applications where color detection is not essential.
Current rating stands at 300 mA, providing sufficient power for the device's operation. Mounting options include four M4 threaded holes, ensuring secure installation in various settings. This model supports NPN current sinking as the input type and outputs are designed for PNP current sourcing, aligning with common system architectures.
With CE certification, the DVT 545M complies with essential safety standards, and its standard CS lens mount accommodates various lens types, including an optional C mount to fit different optical needs. The high-speed processing capability of this vision sensor allows it to quickly analyze images, making it a suitable solution for time-sensitive inspection tasks.
