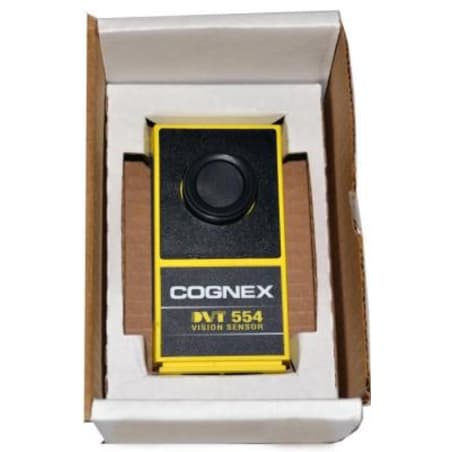

DVT Cognex Vision DVT Cognex DVT 554M

Product image is representative; revision or series may vary. Contact us to request a specific version.

DVT 554M

|
Need a Specific Revision?

The DVT 554M smart image sensor from DVT Cognex is designed for advanced imaging tasks. This sensor uses a grayscale CCD to capture high-resolution images at 1280 x 1024, capable of 30 frames per second for dynamic applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for DVT 554M

ManufacturerDVT Cognex Vision
Product TypeSmart Image Sensor
Product LineDVT Cognex
Part NumberDVT 554M
Image SensorGrayscale CCD
RAM16 MB
I/O8 lines
Current300 mA
Resolution1280 x 1024
Frame Rate30 FPS
Voltage24 V DC
Mounting4x M4 holes
Communication ProtocolTCP/IP, UDP/IP, RJ-45
Image TypeGrayscale
Flash Memory128 MB
NetworkingEthernet 10/100 Mbps
CCD Size1/4 inch
Power Consumption7 W
Request a Repair

The DVT 554M smart image sensor is a key tool from DVT Cognex, enabling detailed grayscale image capture. It features a grayscale CCD with a resolution of 1280 x 1024 pixels, supporting a frame rate of up to 30 FPS. Designed to optimize performance, the device consumes 7 watts of power with an operating current of 300 mA.

It is configured to run on a 24 V DC supply, making it compatible with standard industrial setups. The sensor includes 16 MB of RAM and offers extensive data storage capability with 128 MB flash memory, allowing for processing and retrieval of significant amounts of image data. The 10/100 Mbps Ethernet networking facilitates easy integration with existing systems, employing TCP/IP and UDP/IP communication protocols via an RJ-45 connector.

For physical installation, the unit is designed with four M4 mounting holes, ensuring it can be securely placed in various environments. The sensor also has a 1/4 inch CCD size, which contributes to its compact form factor while maintaining effective image quality. The DVT 554M's precise specifications and robust capabilities make it an essential component for high-performance imaging applications.
