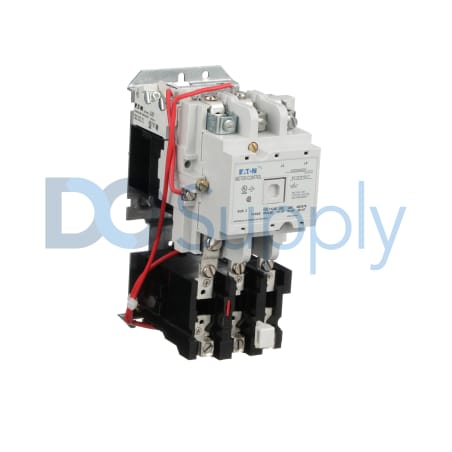

A200M2CX
The A200M2CX is a non-reversing magnetic motor starter from Eaton Cutler-Hammer’s Freedom Series. It features a maximum continuous current rating of 45 A and operates at a voltage of 480 Volts AC, supporting larger electrical systems effectively.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for A200M2CX
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Non-reversing Magnetic Motor Starter |
| Product Line | Freedom Series |
| Part Number | A200M2CX |
| Weight | 3.31 lbs (1.50 kg) |
| UPC | 786678231204 |
| NEMA Size | Size 2 |
| Poles | 3 Poles |
| Max Continuous Current | 45 Amperes |
| Voltage Rating | 480 Volts AC |
| Overload Relay | Block Type |
| System Voltage (Load) | Up to 600 Volts AC |
| Auxiliary Contact | 1 NO (Normally Open) |
| Enclosure Type | Open |
| Certification | UL, CSA |
| Frequency | 60 Hertz |
The Eaton Cutler-Hammer A200M2CX is a non-reversing magnetic motor starter engineered for reliable motor control. This component is rated for a maximum continuous current of 45 amperes, suitable for various industrial applications. It operates efficiently at a voltage of 480 Volts AC, with the capacity to support loads up to 600 Volts AC, ensuring adaptability in different environments.
This unit features three poles, suitable for NEMA Size 2 specifications, making it a robust choice for managing substantial motor loads. The integrated block-type overload relay provides essential protection against excessive current, serving to enhance the longevity and functionality of connected motors.
The open enclosure of the A200M2CX allows for straightforward accessibility during installation and maintenance, facilitating user-friendly operation. Additionally, it includes an auxiliary normally open contact for expanded control capabilities, providing operators with more options in managing electrical circuits. Certified by UL and CSA, this starter adheres to recognized safety and quality standards, ensuring its reliability in diverse applications. Operating at a frequency of 60 Hertz, this motor starter is a reliable component for various motor control tasks in industrial settings.
