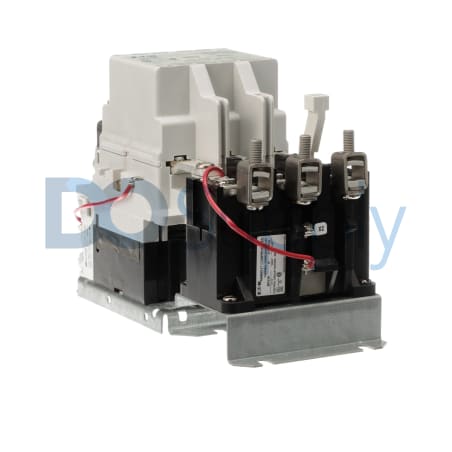

A200M3CX
The A200M3CX from Eaton Cutler-Hammer serves as a NEMA motor control starter, operating effectively at a rated current of 90 Amps and a voltage of 600 VAC. This model is suitable for 3-phase applications and is designed with a coil voltage of 480 V.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for A200M3CX
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | NEMA Motor Control Starter |
| Product Line | Freedom Series |
| Part Number | A200M3CX |
| Weight | 9.19 lbs (4.17 kg) |
| UPC | 786678231297 |
| Rated Current | 90 A |
| Rated Voltage | 600 VAC |
| Coil Voltage | 480 V |
| Phase Type | 3 Phase |
| Number of Poles | 3 Poles |
| NEMA Rating | NEMA 3 |
| Minimum Storage Temperature | 0°C |
| Maximum Storage Temperature | 40°C |
| Storage Humidity | 80% (Non-Condensing) |
| Operating Humidity | 80% (Non-Condensing) |
| Installation Altitude | 1000 MSL |
The A200M3CX model represents Eaton Cutler-Hammer's dedication to reliable motor controls in their Freedom Series. Designed as a NEMA motor control starter, it operates at a robust 600 VAC and supports a rated current of 90 Amps. This device is specifically engineered for 3-phase electrical systems and functions optimally with a coil voltage of 480 V.
With a three-pole configuration, the A200M3CX is built to satisfy NEMA 3 standards, making it suitable for various industrial environments. The unit can operate effectively in humidity levels reaching 80% without condensation, maintaining performance integrity.
Temperature specifications indicate this starter can be stored at a minimum of 0°C and a maximum of 40°C, ensuring it remains functional in a variety of conditions. Moreover, the design accommodates installation points at altitudes up to 1000 meters above sea level. This addition provides flexibility for various applications while ensuring dependable operation in diverse environments.
