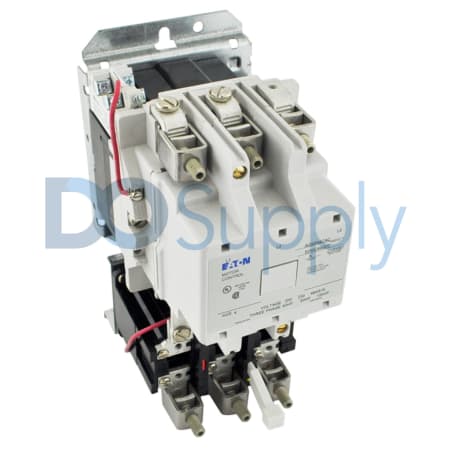

Product image is representative; revision or series may vary. Contact us to request a specific version.
A200M4CAC
The Eaton Cutler-Hammer A200M4CAC serves as a full-voltage magnetic motor starter with versatile capabilities. Designed for heavy-duty applications, it can handle different motor power requirements across various voltage levels.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for A200M4CAC
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Full-Voltage Magnetic Motor Starter |
| Product Line | Freedom Series |
| Part Number | A200M4CAC |
| Weight | 1.69 lbs (0.77 kg) |
| UPC | 786678007199 |
| Motor Power at 208 V | 40 HP |
| Motor Power at 240 V | 50 HP |
| Motor Power at 480 V | 100 HP |
| Motor Power at 600 V | 100 HP |
| Control Coil Voltage | 120 VAC 60 Hz or 110 VAC 50 Hz |
| Phase Compatibility | Three Phase |
| Pole Configuration | 3 Poles |
| NEMA Size | Size 4 |
| Current Rating | 135 A |
| Starter Configuration | Non-Reversing Starter |
| Overload Protection | Thermal Overload Relay |
| Mounting Style | Open Type Mounting |
| Frequency Rating | 50/60 Hz |
The A200M4CAC from Eaton Cutler-Hammer is classified as a full-voltage magnetic motor starter. This component is part of the Freedom Series and features a UPC of 786678007199. It provides extensive motor power compatibility: capable of serving motors rated at 40 HP when powered at 208 V, 50 HP at 240 V, and up to 100 HP at both 480 V and 600 V.
The control coil operates on 120 VAC for 60 Hz or 110 VAC for 50 Hz power supplies, facilitating flexibility in power system integration. Its design is tailored for three-phase applications and employs a three-pole configuration, which helps in efficient motor control operations.
For applications requiring substantial current, this starter has a rated current capacity of 135 A, making it suitable for high-demand environments. Designated as a non-reversing starter, it includes thermal overload protection to safeguard motors from overheating, thus improving reliability. The mounting style for this starter is categorized as open type, enhancing accessibility during installation and maintenance.
Lastly, its frequency rating accommodates both 50 Hz and 60 Hz operations, aligning with a variety of industrial power standards. Overall, the A200M4CAC is built to provide dependable performance across different voltage settings and operational conditions.
