A210M2CAC

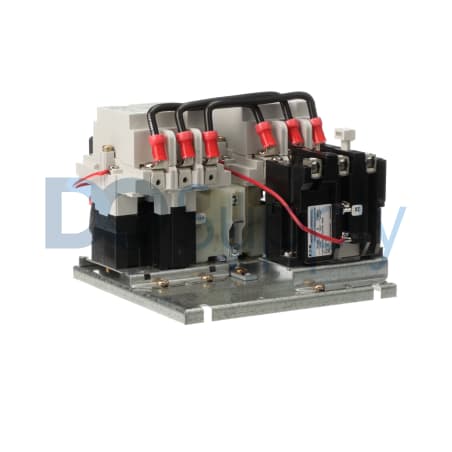

The A210M2CAC from Eaton Cutler-Hammer is a versatile reversing motor starter in the Freedom Series. This device operates with a coil voltage ranging from 110 to 120 volts AC, accommodating both 50 and 60 Hz frequencies. It supports a robust continuous current rating of 45 Amps, making it a solid option for motor control in various setups.

This starter is designed to operate with three poles and falls under the NEMA Size 2 classification. Its maximum switching voltage reaches up to 600 VAC, allowing it to handle substantial electrical loads. The motor output capability varies, supporting capacities of 3 horsepower at 115 V and extending to 25 horsepower at 480/600 V.

The unit features ambient-compensated thermal overload protection, ensuring that the motor is safeguarded against overheating in different environmental conditions. It also includes auxiliary contacts—one normally open and one normally closed—to facilitate different control functions. The device employs screw terminals for power and control connections, ensuring secure and reliable terminations. Additionally, it is designed for panel or chassis surface mounting and possesses an open non-combination starter enclosure style. This configuration makes the A210M2CAC a flexible choice for various motor control applications.
