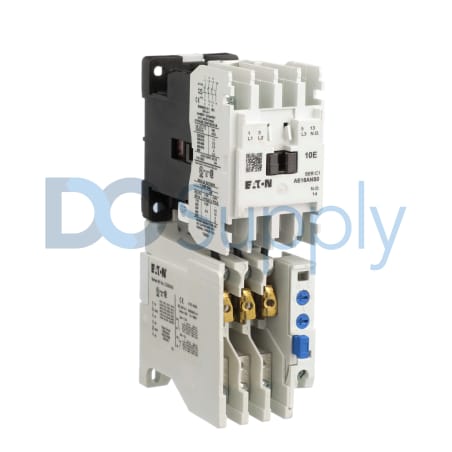

AE16ANS0AC
The Eaton Cutler-Hammer AE16ANS0AC is an electric motor starter in the Freedom Series, designed to handle three-phase operations. It features a rated current of 7.0 A and operates at 600 VAC, making it suitable for high-capacity applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for AE16ANS0AC
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Electric Motor Starter |
| Product Line | Freedom Series |
| Part Number | AE16ANS0AC |
| UPC | 782113970882 |
| Rated Current | 7.0 A |
| Rated Voltage | 600 VAC |
| Number of Poles | 3 Poles |
| Coil Voltage | 110 to 120 V AC |
| Min. Frequency | 50 Hz |
| Max. Frequency | 60 Hz |
| Phase Type | 3-Phase |
| Storage Humidity | 80% (Non-Condensing) |
| Operating Humidity | 80% (Non-Condensing) |
| Installation Altitude | 1000 MSL |
The AE16ANS0AC from Eaton Cutler-Hammer serves as a reliable electric motor starter within the Freedom Series. This starter is intended for three-phase systems and is set up to manage a rated current of 7.0 A. It supports voltage levels of 600 VAC, enabling it to handle demanding motor applications effectively.
The design involves a coil voltage working between 110 to 120 V AC, facilitating straightforward integration into various electrical systems. It functions efficiently at minimum and maximum frequency settings of 50 and 60 Hz, respectively.
Humidity resistance is a notable characteristic, as the starter is rated to operate in environments with a maximum of 80% humidity, both during storage and operation, maintaining performance reliability. Furthermore, it can be installed at altitudes reaching 1000 meters above sea level, conforming to diverse operational conditions and settings.
