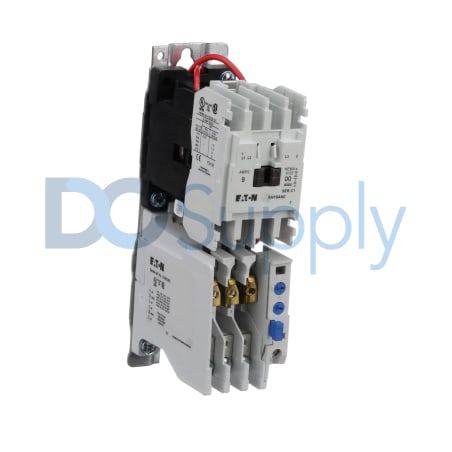

Product image is representative; revision or series may vary. Contact us to request a specific version.
AN16AN0AC
The Eaton Cutler-Hammer AN16AN0AC is a motor control starter designed for effective motor management. With a rated current of 9 Amps, it operates at a control voltage of 110–120 VAC and is compatible with both single and three-phase systems.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for AN16AN0AC
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Motor Control Starter |
| Product Line | Freedom Series |
| Part Number | AN16AN0AC |
| Weight | 2.63 lbs (1.19 kg) |
| UPC | 782113971414 |
| Control Voltage | 110–120 VAC |
| Control Frequency | 50/60 Hz |
| Starter Type | Full-Voltage Non-Reversing |
| Rated Current | 9 A |
| Phase Configuration | Single/Three Phase |
| Enclosure Type | Open |
| Overload Protection | Bi-Metallic Overload Relay |
| Connection Type | Line/Load Lugs |
| Mounting Orientation | Horizontal |
| Auxiliary Contacts | 1 NO |
| Application | Motor Control Panels |
The AN16AN0AC motor control starter from Eaton Cutler-Hammer's Freedom Series provides reliable control for motors. This device is rated for a current of 9 Amperes and operates on a control voltage of 110–120 VAC, suitable for both single-phase and three-phase configurations. The starter employs a full-voltage non-reversing mechanism, making it efficient for starting and stopping motors without reversing functionality.
Constructed with an open enclosure type, this starter ensures adequate cooling and accessibility, which is practical for regular servicing. Overload protection is facilitated by a bi-metallic overload relay, enhancing safety and extending motor lifespan. Connection to the motor is achieved through line/load lugs, simplifying installation.
This model is mounted horizontally, making it versatile for various applications, particularly in motor control panels. Additionally, it features one normally open auxiliary contact, allowing for added control capabilities within motor control circuits. The device operates at a control frequency of 50/60 Hz, further affirming its compatibility with standard motor specifications.
