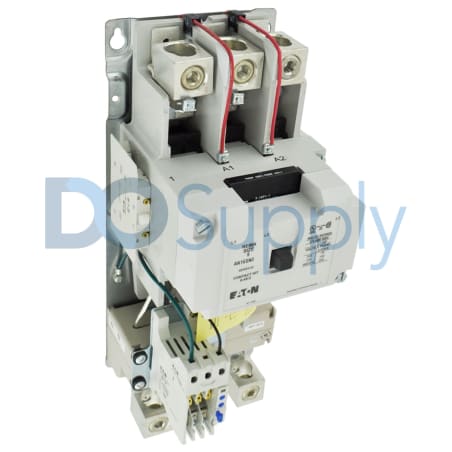

Product image is representative; revision or series may vary. Contact us to request a specific version.
AN16SN0CB
The Eaton Cutler-Hammer AN16SN0CB is a motor control starter designed for 3-phase applications, rated for 270 Amps. This non-reversing starter operates at either 480 V or 440 V, making it suitable for various systems.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for AN16SN0CB
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Motor Control Starter |
| Product Line | Freedom Series |
| Part Number | AN16SN0CB |
| Weight | 25.00 lbs (11.34 kg) |
| UPC | 782113971896 |
| Poles | 3 poles |
| Starter Type | Non-Reversing |
| Amperage | 270 A |
| Mounting | Horizontal |
| Phase | 3 phase |
| Overload Relay | C306 Bi-Metal OLR |
| Voltage | 480 V/440 V |
| Protection | Overload/Short Circuit |
| Coil Voltage | 480 V 60 Hz/440 V 50 Hz |
| NEMA Size | Size 5 |
The model AN16SN0CB motor control starter, part of Eaton Cutler-Hammer's Freedom Series, is engineered for efficiency in motor control applications. Designed for 3-phase systems, this device has a maximum amperage rating of 270 A. The starter features a non-reversing action, optimizing functionality for specific operations. With three poles, it supports robust electrical connections.
This unit operates at voltage levels of either 480 V or 440 V, providing flexibility to integrate into differing electrical systems. An integral C306 bi-metal overload relay serves as an essential component for protection against possible overload and short circuit situations.
Designed with a straightforward horizontal mounting method, the AN16SN0CB meets NEMA size 5 requirements, ensuring compatibility with specific mounting configurations. Furthermore, the coil voltage operates efficiently at 480 V for 60 Hz applications or 440 V for 50 Hz applications. This ensures stable performance across numerous industrial scenarios.
