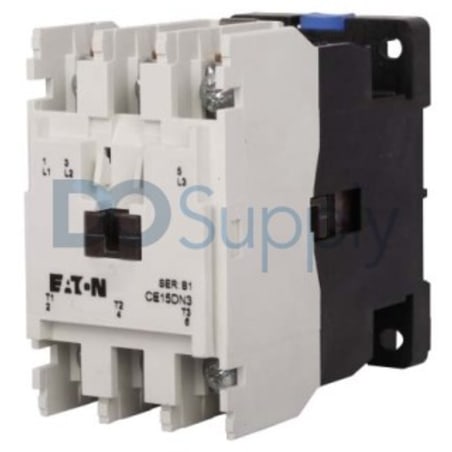

Product image is representative; revision or series may vary. Contact us to request a specific version.
CE15ENS3AB
The CE15ENS3AB is a contactor from Eaton Cutler-Hammer’s Freedom Series, designed for reliable control in electrical systems. It handles a voltage rating of 110-120 Vac and an amperage rating of 25 A across its three poles, making it suitable for various applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CE15ENS3AB
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Contactor |
| Product Line | Freedom Series |
| Part Number | CE15ENS3AB |
| Weight | 1.00 lbs (0.45 kg) |
| UPC | 782113779010 |
| Voltage Rating | 110-120 Vac |
| Amperage Rating | 25 A |
| Number of Poles | Three poles |
| HP Rating - Max | 2 hp |
| Frequency Rating | 50-60 Hz |
| Frame Size | Frame E |
| Contact Configuration | 1 NO |
| Relay | No overload relay |
| Mounting Method | Side Mounted |
| Phase | 3-Phase |
| Coil Inrush Consumption | 60-70 VA |
| Terminal Type | Steel screw terminals |
| Certification | UL Listed, IEC Rated, CSA Certified |
The Eaton Cutler-Hammer CE15ENS3AB, part of the Freedom Series, is a robust contactor specially designed for control applications. Rated to operate at voltages of 110-120 Vac, it can manage up to 25 amperes across three poles. This model is capable of handling a maximum horsepower of 2 hp, making it suitable for a variety of motor control applications.
Operating on 50 to 60 Hz frequency, the CE15ENS3AB features a contact configuration with a single normally open (NO) contact. Notably, it does not incorporate an overload relay, simplifying its design. The device is intended for side mounting, which allows for flexible installation options in various panel configurations, accommodating 3-phase systems seamlessly.
The coil inrush consumption for this contactor ranges from 60 to 70 VA, indicating the energy required to energize it initially. Connection terminals are made with durable steel screws, promoting a stable and reliable electrical connection. Additionally, the CE15ENS3AB has received multiple certifications, including UL Listing, IEC Rating, and CSA Certification, affirming its adherence to high-quality industry standards and safety requirements.
