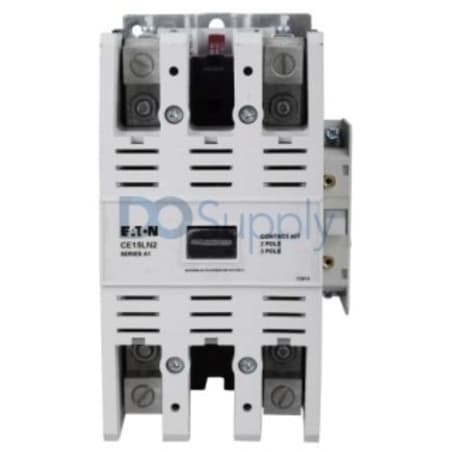

Product image is representative; revision or series may vary. Contact us to request a specific version.
CE15MN3A
The Eaton Cutler-Hammer CE15MN3A is a robust contactor designed to handle significant electrical loads. It is rated for 105 Amps with operational capabilities at 600 VAC, suitable for a range of industrial applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CE15MN3A
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Contactor |
| Product Line | Freedom Series |
| Part Number | CE15MN3A |
| Weight | 8.06 lbs (3.66 kg) |
| UPC | 782113604022 |
| Auxiliary Contacts | None |
| Termination Type | Box Lug |
| Electrical Durability | 2 million operations |
| Mechanical Durability | 20 million operations |
| Rated Current | 105 Amps |
| Rated Voltage | 600 VAC |
| Pole Count | 3 Poles |
| Coil Voltage Range | 110–120 VAC 50–60 Hz |
| Operating Frequency | 50–60 Hz |
| Horsepower Rating | 10 HP |
| Operation Type | Non-Reversing |
| Mounting Style | Steel Surface Plate |
The CE15MN3A from Eaton Cutler-Hammer, belonging to the Freedom Series, is engineered as a reliable contactor for managing high electrical demands. It has a rated current of 105 Amps and operates at a maximum voltage of 600 VAC, making it suitable for diverse applications. With a 3-pole configuration, this contactor can effectively control multiple circuits simultaneously.
The coil voltage operates within the range of 110-120 VAC at a frequency of 50-60 Hz, which ensures compatibility with standard power systems. The contactor is designed to endure significant wear and tear, with an electrical durability rated at 2 million operations and a mechanical durability of 20 million cycles. This durability signifies its long-lasting performance even under demanding conditions.
For installation, the CE15MN3A utilizes a box lug termination type and mounts securely onto a steel surface plate. It functions in a non-reversing mode and carries a horsepower rating of 10 HP, making it ideal for applications where reverse operation is unnecessary. This contactor’s design ensures it meets the rigorous demands of industrial environments.
