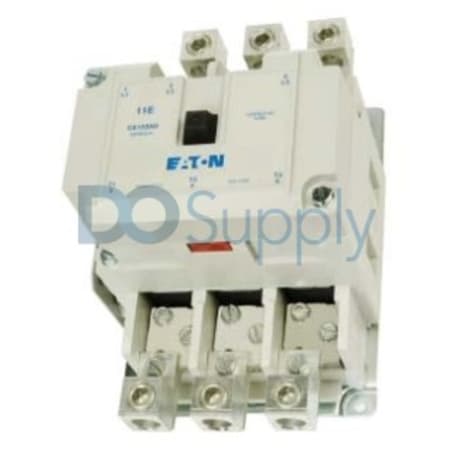

CE15SN3A
The CE15SN3A is an Eaton Cutler-Hammer contactor from the Freedom Series. Designed for reliable operation, this model features a continuous current rating of up to 300 amperes, with coil voltage ratings between 110 and 120 volts AC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CE15SN3A
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Contactor |
| Product Line | Freedom Series |
| Part Number | CE15SN3A |
| Weight | 20.00 lbs (9.07 kg) |
| UPC | 782113035574 |
| Frequency Range | 50 to 60 Hertz |
| Enclosure Type | Open enclosure |
| Coil Voltage Rating | 110 to 120 Volts AC |
| Contact Configuration | 1 Normally Open (NO) contact and 1 Normally Closed (NC) contact |
| Continuous Current Rating | 300 Amperes |
| Mounting Position | Side mount |
| Contactor Type | Non-reversing |
| Frame Size | Frame size S |
| Overload Protection | No overload relay |
| Number of Poles | 3 poles |
| Certifications | IEC, CSA, and UL-listed |
| Termination Style | Screw terminals |
The Eaton Cutler-Hammer CE15SN3A contactor stands out for its sturdy design, capable of handling a continuous current of 300 amperes. This component operates effectively within a coil voltage range of 110 to 120 volts AC, making it suitable for various applications. Functionality is ensured through one normally open and one normally closed contact, with a total of three poles supporting its operation.
Operating within the efficient frequency range of 50 to 60 hertz, this contactor is categorized as non-reversing, simplifying its application in various control setups. The side mount configuration allows for straightforward installation in tight spaces, boosting versatility.
Notably, the CE15SN3A contactor does not incorporate an overload relay, indicating its design focus on simpler applications where overload protection may not be necessary. Housed in an open enclosure type, it offers easy access for wiring and maintenance tasks. Additionally, it is compliant with certifications from IEC, CSA, and UL, distinguishing it as a reliable choice in both domestic and international markets. Termination is facilitated through screw terminals, ensuring secure connections for installation.
