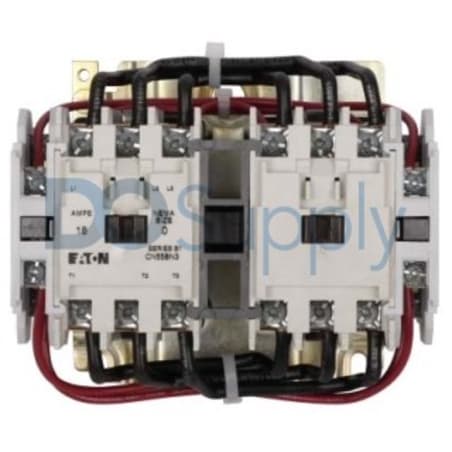

CN55BN3AB
The CN55BN3AB from Eaton Cutler-Hammer is a NEMA reversing contactor designed for versatile applications. This unit can handle both single-phase and three-phase systems, rated for a current of 18 A. It operates seamlessly across a range of coil voltages, accommodating 110 VAC at 50 Hz and 120 VAC at 60 Hz.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CN55BN3AB
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | NEMA Reversing Contactor |
| Product Line | Freedom Series |
| Part Number | CN55BN3AB |
| Weight | 8.50 lbs (3.86 kg) |
| UPC | 782113781327 |
| NEMA Size | Size 0 |
| Rated Current | 18 A |
| Number of Poles | 3 Poles |
| Phase Compatibility | Single-Phase / 3-Phase |
| Coil Voltage at 50 Hz | 110 VAC |
| Coil Voltage at 60 Hz | 120 VAC |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Number of N.O. Auxiliary Contacts | 1 N.O. Contact |
| Number of N.C. Auxiliary Contacts | 1 N.C. Contact |
The CN55BN3AB, a reversing contactor from Eaton Cutler-Hammer's Freedom Series, is engineered for reliability in various industrial scenarios. It is categorized as a NEMA Size 0 device and weighs 2.9 lbs, making it suitable for space-constrained setups. This contactor can handle a rated current up to 18 Amps and supports both single-phase and three-phase applications.
This unit operates on a coil voltage of either 110 VAC at 50 Hz or 120 VAC at 60 Hz. Its multi-phase compatibility enhances its adaptability across different electrical setups. Additionally, the CN55BN3AB is equipped with three poles. Auxiliary contact options include one normally open contact and one normally closed contact, facilitating greater versatility in control circuits.
Operating frequencies for the CN55BN3AB range from 50 Hz to 60 Hz, ensuring consistent performance under standard operational conditions. The product UPC is 782113781327, providing a straightforward method for inventory management.
