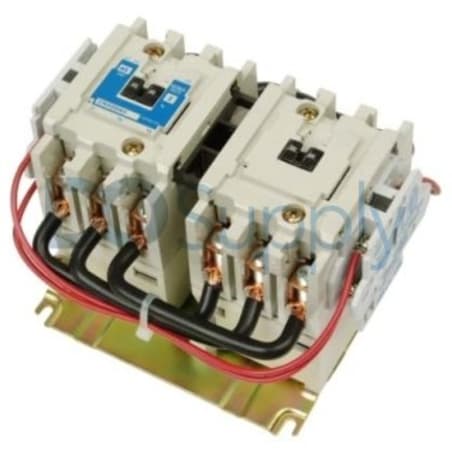

Product image is representative; revision or series may vary. Contact us to request a specific version.
CN55GN3AB
The CN55GN3AB motor control contactor from Eaton Cutler-Hammer is suitable for motor management in both single and three-phase applications. It is rated for 45 A and operates with coil voltages between 110 and 120 V, supporting a frequency range of 50 to 60 Hz.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CN55GN3AB
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Motor Control Contactor |
| Product Line | Freedom Series |
| Part Number | CN55GN3AB |
| Weight | 9.69 lbs (4.39 kg) |
| UPC | 782113973586 |
| NEMA Size | Size 2 |
| Rated Current | 45 A |
| Phase Compatibility | Single or Three Phase |
| Coil Voltage | 110 to 120 V |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Horsepower Rating at 115 V | 3 Hp |
| Horsepower Rating at 230 V | 7-1/2 Hp |
| Rated Horsepower at 208 V | 10 Hp |
| Rated Horsepower at 240 V | 15 Hp |
| Horsepower Rating at 480 and 600 V | 25 Hp |
The Eaton Cutler-Hammer CN55GN3AB is a motor control contactor that excels in managing motor operations efficiently. This model is classified as a Size 2 contactor, operating effectively with a rated current of 45 A. It can function in both single-phase and three-phase systems, offering flexible application options.
The contactor operates within a coil voltage range of 110 to 120 volts, providing reliability in control circuits. It supports both 50 Hz and 60 Hz frequency settings, making it adaptable to various industrial requirements. This versatility extends to its horsepower ratings: at 115 volts, it handles 3 horsepowers, while at 230 volts, it supports up to 7-1/2 horsepowers. In applications with a voltage of 208 volts, it manages 10 horsepowers, 15 horsepowers at 240 volts, and an impressive 25 horsepowers at both 480 and 600 volts. This range of ratings ensures that the CN55GN3AB can meet the demands of different motor types and sizes effectively.
