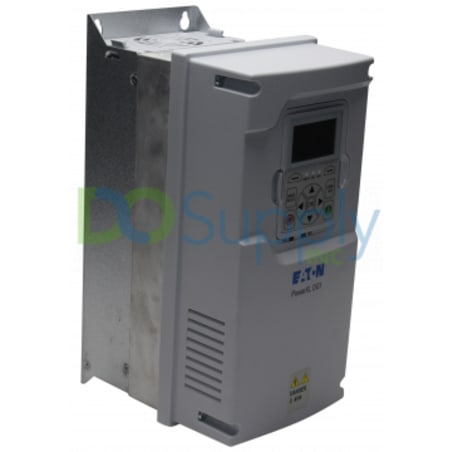

Eaton Cutler-Hammer PowerXL DG1 DG1-342D2FB-C21C

Product image is representative; revision or series may vary. Contact us to request a specific version.

DG1-342D2FB-C21C

|
Need a Specific Revision?

The DG1-342D2FB-C21C is a variable frequency drive from Eaton Cutler-Hammer's PowerXL DG1 series. This unit operates at 1 horsepower with a 3-phase configuration, supporting a voltage input range of 208-240 V and provides output capabilities up to 2.2 A.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for DG1-342D2FB-C21C

ManufacturerEaton Cutler-Hammer
Product TypeVariable Frequency Drive
Product LinePowerXL DG1
Part NumberDG1-342D2FB-C21C
UPC786685878829
Weight6.50 lbs (2.95 kg)
Chopper TypeBrake Chopper
Horsepower1 Hp
Phase Type3 Phase
Minimum Frequency50 Hz
Maximum Frequency60 Hz
Frame TypeFrame 1
HIM Input TypeKeypad
Input Voltage230, 208-240 V
Display TypeLCD Graphical
Communication TypeEtherNet, RS-485, BACnet MS/TP, Modbus TCP and RTU communication
IP ProtectionIP21
Enclosure TypeNEMA 1
Output Current Rating2.2 A
Power Consumption0.75 W
Request a Repair

The Eaton Cutler-Hammer DG1-342D2FB-C21C is a versatile variable frequency drive. Designed for efficiency, it operates at 1 horsepower and requires a 3-phase power setup. The input voltage options comprise a range of 208-240 V, making it adaptable to different installations. It can function between a minimum frequency of 50 Hz and a maximum frequency of 60 Hz, which suits standard industrial applications.

The drive includes a brake chopper type, enhancing its capabilities for dynamic loads. For user interaction, it is equipped with a keypad human interface module (HIM). The LCD graphical display allows for easy monitoring and adjustments.

For communication, the DG1 model supports multiple protocols such as EtherNet, RS-485, BACnet MS/TP, and both Modbus TCP and RTU, allowing integration into various networked systems. The unit is housed in a NEMA 1 enclosure, rated at IP21, providing protection against solid objects larger than 12 mm and dripping water at a vertical angle.

Its output current rating is set at 2.2 A, and the power consumption for this unit is kept low at 0.75 W, supporting energy-efficient operations in various environments. Frame type is designated as Frame 1, allowing for custom fit and installation in designated spaces.
