SVX020A1-4A1B1

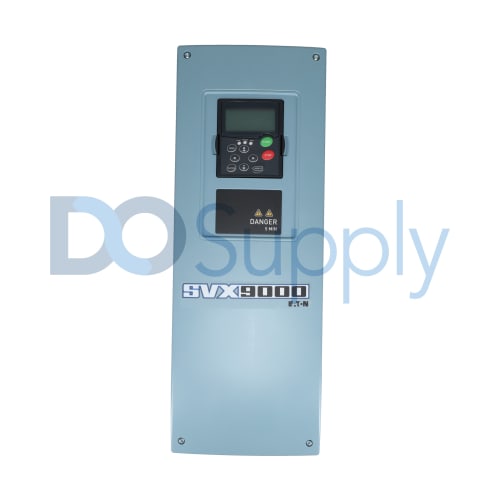

Description: The Eaton Cutler-Hammer SVX020A1-4A1B1 adjustable frequency drive has been designed and manufactured as part of the SVX 9000 series. Its output power rating is 20 Horsepower while its input power rating is 480 Volts AC 3-phase voltage at a frequency rating between 50 and 60 Hertz. The SVX020A1-4A1B1 adjustable frequency drive comes with 6 digital inputs and 2 analog outputs as well as with 1 digital input, 1 analog output, and 2 relay outputs. Its brake chopper option is an internal brake chopper circuit. The SVX020A1-4A1B1 adjustable frequency drive can support sensorless vector control and closed-loop motor control.
Available Now
Request a quote for SVX020A1-4A1B1

Description: The Eaton Cutler-Hammer SVX020A1-4A1B1 adjustable frequency drive has been designed and manufactured as part of the SVX 9000 series. Its output power rating is 20 Horsepower while its input power rating is 480 Volts AC 3-phase voltage at a frequency rating between 50 and 60 Hertz. The SVX020A1-4A1B1 adjustable frequency drive comes with 6 digital inputs and 2 analog outputs as well as with 1 digital input, 1 analog output, and 2 relay outputs. Its brake chopper option is an internal brake chopper circuit. The SVX020A1-4A1B1 adjustable frequency drive can support sensorless vector control and closed-loop motor control.

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for Eaton Cutler-Hammer.

top legal disclaimer
disclaimer
credit cards
better business bureau

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the SVX020A1-4A1B1.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.6 with 15 reviews

    Technical Specifications for SVX020A1-4A1B1

ManufacturerEaton Cutler-Hammer
BrandEaton Cutler-Hammer
Part Number/Catalog No.SVX020A1-4A1B1
Product TypeAdjustable Frequency Drive
Product FamilyOpen Drives
Horsepower20
EnclosureNEMA Type 1
Voltage 480V
Kepyad TypeAlphanumeric
Input Option3-phase, EMC H
Brake Chopper OptionInternal Brake Chopper Circuit
Board ModificationsStandard Boards
Frame SizeFR6
Supply Frequency50/60 Hz
Inputs2 Analog, 6 Digital
Outputs1 Analog, 1 Digital, 2 Relay
ManufacturerEaton Cutler-Hammer
BrandEaton Cutler-Hammer
Part Number/Catalog No.SVX020A1-4A1B1
Product TypeAdjustable Frequency Drive
Product FamilyOpen Drives
Horsepower20
EnclosureNEMA Type 1
Voltage 480V
Kepyad TypeAlphanumeric
Input Option3-phase, EMC H
Brake Chopper OptionInternal Brake Chopper Circuit
Board ModificationsStandard Boards
Frame SizeFR6
Supply Frequency50/60 Hz
Inputs2 Analog, 6 Digital
Outputs1 Analog, 1 Digital, 2 Relay
s

About SVX020A1-4A1B1

The SVX020A1-4A1B1 unit is a product of the Eaton Cutler-Hammer SVX 9000 drive series. It is an adjustable frequency drive that has both 208 Volt and 480 Volt voltage models, operating at 20 Horsepower. This module has an FR6 Frame size and is rated for a NEMA Type 1 and 12 enclosure type; it contains eight inputs and four outputs along with an alphanumeric keypad, standard boards, a 3-phase input option, a 50 to 60 Hertz frequency supply, and an internal brake chopper circuit. It also has a sensorless flux control that achieves the precision of closed-loop motor control for almost every speed range. The SVX020A1-4A1B1 drive is known to automatically identify the motor parameters for both u/f and sensorless vector mode by keeping track of changing in parameters over time.



Depending upon the size of the drive and the motor, its torque rise time is less than 10 minutes, has steady speed error of less than 5%, and is immune to the resonance vibrations. With the special applications, it also gives a maximum output frequency of 7200 Hertz. The SVX020A1-4A1B1 drive has a starting torque of 200% and comes as a suitable option for the high-speed applications and multi-motor drive systems. With sensorless vector technology couples with the ASIC circuit features and an adaptive motor model, the SVX020A1-4A1B1 drive also serves as a module and a compact solution for variable speed applications. Moreover, the vector control of this drive is carried out in the system of flux coordinated that is quite immune to motor parameters and measurement variations.



Technical Description of SVX020A1-4A1B1

The Eaton Cutler-Hammer SVX020A1-4A1B1 Adjustable Frequency Drive has 20 hp, a 480V Voltage , and a FR6 Frame Size. It also contains 8 Inputs and 4 Outputs.

Repair Services for SVX020A1-4A1B1

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your SVX020A1-4A1B1. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
