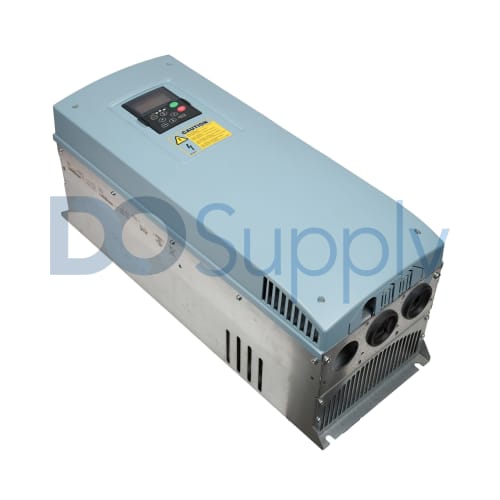

Description: The Eaton Cutler-Hammer SVX040A1-4A1N1 Adjustable Frequency Drive has 40 hp, a 480V Voltage , and a FR7 Frame Size. It also contains 8 Inputs and 4 Outputs.
In Stock Ships Today
Request a quote for SVX040A1-4A1N1

Description:

The Eaton Cutler-Hammer SVX040A1-4A1N1 Adjustable Frequency Drive has 40 hp, a 480V Voltage , and a FR7 Frame Size. It also contains 8 Inputs and 4 Outputs.



Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the SVX040A1-4A1N1.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

phone

International
919-205-4392

Rated 4.7 with 15 reviews

    Technical Specifications for SVX040A1-4A1N1

ManufacturerEaton Cutler-Hammer
BrandEaton Cutler-Hammer
Part Number/Catalog No.SVX040A1-4A1N1
Product TypeAdjustable Frequency Drive
Product FamilyOpen Drives
Horsepower40
AFD Software SeriesStandard
EnclosureNEMA Type 1
Voltage 480V
Kepyad TypeAlphanumeric
Input Option3-phase, EMC H
Brake Chopper OptionNo Brake Chopper Circuit
Board ModificationsStandard Boards
Frame SizeFR7
Supply Frequency50/60 Hz
Inputs2 Analog, 6 Digital
Outputs1 Analog, 1 Digital, 2 Relay
ManufacturerEaton Cutler-Hammer
BrandEaton Cutler-Hammer
Part Number/Catalog No.SVX040A1-4A1N1
Product TypeAdjustable Frequency Drive
Product FamilyOpen Drives
Horsepower40
AFD Software SeriesStandard
EnclosureNEMA Type 1
Voltage 480V
Kepyad TypeAlphanumeric
Input Option3-phase, EMC H
Brake Chopper OptionNo Brake Chopper Circuit
Board ModificationsStandard Boards
Frame SizeFR7
Supply Frequency50/60 Hz
Inputs2 Analog, 6 Digital
Outputs1 Analog, 1 Digital, 2 Relay
s

About SVX040A1-4A1N1

The SVX040A1-4A1N1 is an Adjustable Frequency AC drive manufactured by the Cutler-Hammer division of Eaton Corporation. This is a 40 Horsepower AC drive that belongs to 9000X AF drive family and it is designed to work with 3-phase motors exclusively, rated for a 380 to 500 Volt AC voltage and up to 61 Amperes. The output frequency of this module can be programmed for up to 320 Hertz. Power, motor, DC, and break terminals are all provided on the SVX040A1-4A1N1 adjustable frequency AC drive and it has integrated two basic boards (A2 and A9; the A9 board has two analog inputs at 0 to 10 Volt DC or 4 to 20 mA, 6 digital inputs at 24 Volts DC, one analog output at 0 to 10 Volts DC or 4 to 20 mA, and 1 digital output that is an open collector with a maximum current of 50 mA. This board has 4 jumper blocks (X1, X2, X3, and X6) for analog inputs, outputs, and grounding settings while the A2 board has two relays, a NO/NC selectable with 24 Volt DC/8A, 250 Volt AC/8A, and 125 Volt DC/0.4A switching capacities. The HMI (Human Machine Interface) on this drive has an LCD display with an alphanumeric keypad; there are run, remote, and fault LED status indicators on this HMI and the LCD display also shows indicators for run, stop, ready, alarm, fault, direction, I/O terminal control, keypad control, and bus control. This HMI features a Startup Wizard option that guides the operator through the basic setup for fast commissioning at the module’s power up. This device is packed in a NEMA 1(IP21) protected housing with dimensions of 190 x 630 x 257 millimeters (7.5 x 25.8 x 10.1 inches). The drive weighs approximately 35 kilograms (77.2 pounds) and its permitted ambient working temperature is between -10 and 50 degrees Celsius.

Repair Services for SVX040A1-4A1N1

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your SVX040A1-4A1N1. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.
