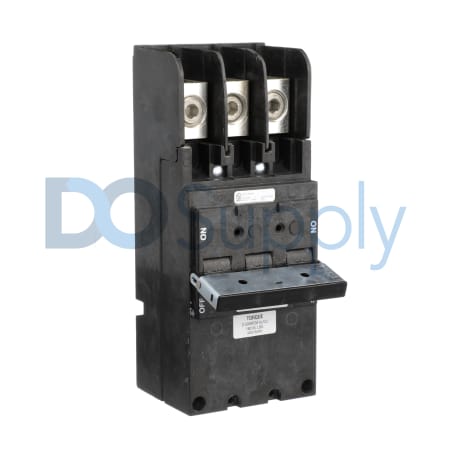

Product image is representative; revision or series may vary. Contact us to request a specific version.
BJ3150
The Eaton Cutler-Hammer BJ3150 is a compact miniature circuit breaker designed for efficient circuit protection. This unit features a 150 A amperage rating, suitable for 240 V AC systems, providing effective current interruption capabilities.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for BJ3150
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Miniature Circuit Breaker |
| Product Line | BJ Breakers |
| Part Number | BJ3150 |
| Weight | 2.50 lbs (1.13 kg) |
| Number of Poles | 3-Pole |
| Amperage Rating | 150 A |
| Voltage Rating | 240 V AC |
| Interrupting Rating (AIC) | 10 KAIC |
| Trip Type | Thermal-Magnetic |
| Mounting Method | Plug-on mounting |
| Wire Material Compatibility | Aluminum (Al) or Copper |
| Conductor Size Range | #2 AWG |
| Trip Configuration | Common Breaker Trip |
| Minimum Storage Temperature | -40 °C |
| Maximum Storage Temperature | 80 °C |
The BJ3150 model, crafted by Eaton Cutler-Hammer, is a miniature circuit breaker engineered for versatility in electrical applications. Functioning with three poles, this breaker is rated for 150 amperes and operates effectively under a voltage of 240 volts AC. It boasts an interrupting rating of 10 KAIC, allowing it to handle substantial fault currents for reliable circuit protection.
Designed with a thermal-magnetic trip type, the BJ3150 ensures prompt responses to overload and short circuit conditions. This unit features a plug-on mounting method that allows for quick installation, enhancing convenience in panel configurations. The wiring can utilize aluminum or copper materials, making it adaptable to various installation requirements. It supports conductor sizes of up to #2 AWG, accommodating a range of cabling options.
For durability, this circuit breaker can be stored within a temperature range of -40 °C to 80 °C. Its trip configuration is based on a common breaker trip, ensuring consistent performance across all poles. The Eaton Cutler-Hammer BJ3150 is a viable choice for applications where space-saving and high performance are essential.
