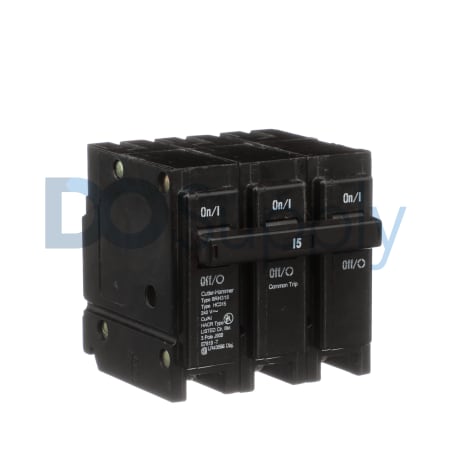

Product image is representative; revision or series may vary. Contact us to request a specific version.
BRH360
The Eaton Cutler-Hammer BRH360 is a thermal magnetic circuit breaker featuring three poles designed for 240 volts AC applications. It has a 60 Ampere capacity with a common trip function, ensuring effective circuit protection.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for BRH360
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Thermal Magnetic Circuit Breaker |
| Product Line | BR Circuit Breakers |
| Part Number | BRH360 |
| Weight | 2.00 lbs (0.91 kg) |
| UPC | 786676372756 |
| Amperage Rating | 60 Amperes |
| Voltage Rating | 240 Volts AC |
| Poles | 3 Poles |
| AIC Rating | 22 kAIC |
| Trip Type | Thermal Magnetic |
| Trip Functions | Common Trip |
| Mounting | 1-inch Plug-On |
| Connection Type | #4-1/0 AWG Cu/Al lugs |
| Standards | Federal Spec W-C376, UL 490 |
| HACR Rated | Yes |
| Operating Temperature | -20 to 60 degrees Celsius |
The BRH360 model from Eaton Cutler-Hammer is classified as a thermal magnetic circuit breaker, tailored for commercial and industrial uses. With a voltage rating of 240 Volts AC and an amperage capacity of 60 Amps, this circuit breaker is engineered to handle significant electrical loads effectively. Its three-pole design supports a common trip function, ensuring that all phases disconnect simultaneously in the event of a fault, thereby enhancing overall system safety.
The breaker's AIC rating of 22 kAIC highlights its capability to withstand short-circuit conditions, offering reliability for critical applications. It is compatible with a 1-inch plug-on mounting method and connects via #4-1/0 AWG lugs, suitable for either copper or aluminum wiring.
The BRH360 adheres to important standards, including Federal Specification W-C376 and UL 490, affirming its quality and safety compliance. Additionally, this breaker is HACR-rated, making it ideal for HVAC applications. Designed to operate within a temperature range from -20 to 60 degrees Celsius, the BRH360 is versatile for a variety of environments.
