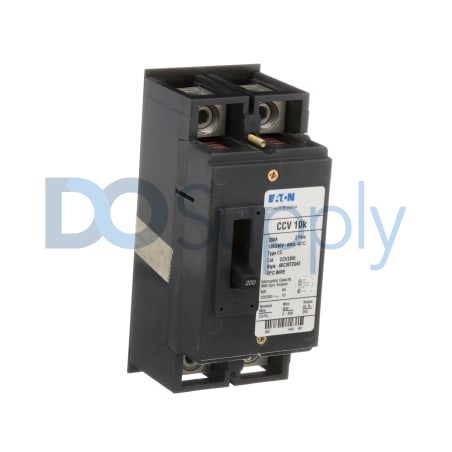

Product image is representative; revision or series may vary. Contact us to request a specific version.
CCV2175
The CCV2175 is a tenant main circuit breaker from the Eaton Cutler-Hammer CCV Series, designed with a rated amperage of 175 A and a voltage rating of 120/240 V. It features thermal magnetic trip technology and ensures reliable protection with an interrupt rating of 10 kAIC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CCV2175
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Tenant Main Circuit Breaker |
| Product Line | CCV Series |
| Part Number | CCV2175 |
| Weight | 3.00 lbs (1.36 kg) |
| UPC | 786685368511 |
| Rated Amperage | 175 A |
| Voltage Rating | 120/240 V |
| Interrupt Rating | 10 kAIC |
| Trip Type | Thermal Magnetic |
| Conductor Material | Copper/Aluminum |
| Compatible Enclosure | Type ECC |
| Line Side Termination | Lugs |
| Frequency | 60 Hz |
| Application | Tenant Main Protection |
| Number of Poles | 2 Poles |
The Eaton Cutler-Hammer CCV2175 serves as a tenant main circuit breaker, promoting safety in electrical distribution systems. It operates at a rated amperage of 175 A with a voltage rating of 120/240 V. The dependable thermal magnetic trip type adds reliability to its function, providing protection against overloads and faults.
The device includes an interrupt rating of 10 kAIC, enabling it to manage fault currents effectively and maintain system integrity. This 2-pole breaker is a critical component for tenant main protection, ensuring safe operation in various applications.
Designed for efficiency, the CCV2175 is compatible with Type ECC enclosures, allowing for versatile installation options. The unit utilizes lugs for line side termination, accommodating both copper and aluminum conductor materials. With a standard frequency of 60 Hz, this breaker is well-equipped to serve in diverse electrical setups.
