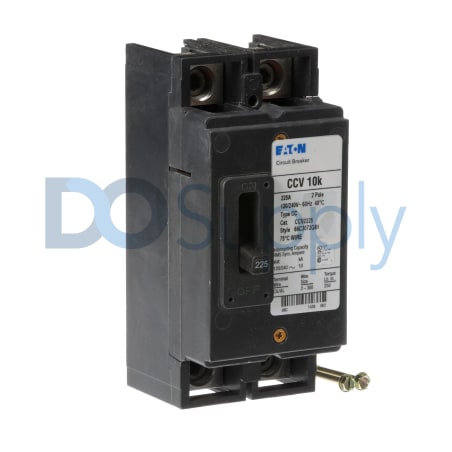

Product image is representative; revision or series may vary. Contact us to request a specific version.
CCV2225
The CCV2225, part of Eaton Cutler-Hammer's CCV series, is designed as a tenant main breaker suited for various electrical applications. This component supports a rated current of 225 A and operates on a voltage rating of 120/240 V.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CCV2225
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Tenant Main Breaker |
| Product Line | CCV Series |
| Part Number | CCV2225 |
| Weight | 3.00 lbs (1.36 kg) |
| UPC | 786685368641 |
| Rated Current | 225 A |
| Rated Voltage | 120/240 V |
| Interrupt Rating | 10 KAIC |
| Number of Poles | 2 Poles |
| Phase Type | 1-Phase |
| Protection Type | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Connection Type | Feed-Thru Connection |
| Operating Humidity | 80% (non-Condensing) |
| Installation Altitude | 1000 MSL |
The Eaton Cutler-Hammer CCV2225 is a tenant main breaker designed for reliable performance in electrical distribution systems. Rated for a current of 225 A, it is capable of operating at a voltage of 120/240 V. Its design includes two poles and supports single-phase applications, making it adaptable to many setups.
With an interrupt rating of 10 KAIC, this breaker provides substantial fault current protection, ensuring safety within installations. It employs a thermal magnetic protection mechanism that features long-time and instantaneous trip functions, enhancing its capability to respond swiftly to overloads.
Connectivity is facilitated through a feed-thru connection, which allows for hassle-free installation and integration into existing systems. The CCV2225 operates efficiently under a maximum humidity level of 80% (non-condensing) and is permissible for use at installation altitudes of up to 1000 meters above sea level. This combination of specifications makes the CCV2225 a dependable choice in tenant electrical service applications.
