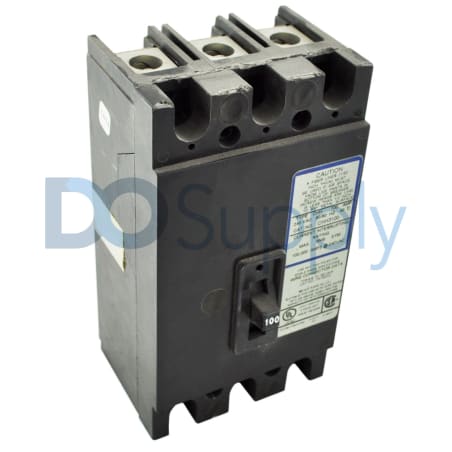

Product image is representative; revision or series may vary. Contact us to request a specific version.
CVS3100X
The Eaton Cutler-Hammer CVS3100X is a molded case circuit breaker designed for three-phase applications. With a 100 Ampere rating and a maximum voltage of 240 Volts AC, it is engineered for robust circuit protection.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for CVS3100X
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Product Line | CCV Series |
| Part Number | CVS3100X |
| UPC | 786685704227 |
| Amperage Rating | 100 Amperes |
| Voltage Rating | 240 Volts AC |
| Phase | 3 Phase |
| Poles | 3 Poles |
| Trip Type | Thermal Magnetic (Long Time & Instantaneous) |
| AIC Rating | 42 kA @ 240 Volts |
| Frame Type | CV (CVS) |
| Mounting Type | Bolt-On |
| Wire Range | #6–4/0 AWG Cu/Al |
| Certifications | UL 489, CSA |
The CVS3100X from Eaton Cutler-Hammer falls under the CCV series and is a highly effective molded case circuit breaker. This breaker offers a current rating of 100 Amperes, making it suitable for significant loads. It functions within a maximum voltage rating of 240 Volts AC and is specifically built for three-phase service. The design includes three poles, enhancing its capability for more complex circuit arrangements.
Equipped with a thermal magnetic trip mechanism, this device provides both long-time and instantaneous trip functions which are essential for protecting circuits from overloads and short circuits. The adjustable AIC rating of 42 kA at 240 Volts ensures reliability during fault conditions, making it a dependable choice in various applications.
The unit mounts using a bolt-on approach, simplifying installation. The wire range accommodates sizes from #6 to 4/0 AWG, supporting both copper and aluminum conductor types, which adds to its versatility in different electrical setups. This circuit breaker is certified by UL 489 and CSA, signifying adherence to established industry safety standards.
