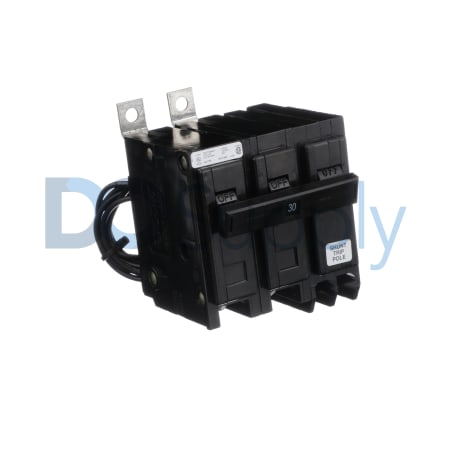

Eaton Cutler-Hammer QuickLag BAB2030S

Product image is representative; revision or series may vary. Contact us to request a specific version.

BAB2030S

|
Need a Specific Revision?

The BAB2030S from Eaton Cutler-Hammer's QuickLag series functions as a circuit breaker designed for practical applications. This device has a rated current of 30 Amperes and accommodates a voltage range from 120 to 240 Volts.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for BAB2030S

ManufacturerEaton Cutler-Hammer
Product TypeCircuit Breakers
Product LineQuickLag
Part NumberBAB2030S
Weight0.88 lbs (0.40 kg)
UPC786679509623
Rated Voltage120 to 240 V
Interrupt Rating10 KAIC
Rated Current30 A
Number of Poles2 Poles
Mounting TypeBolt-on Mount
Trip TypeNon-Interchangeable
Operating Humidity80% (non-Condensing)
Installation Altitude1000 MSL
Storage Humidity80% (non-Condensing)
Minimum Operating Temperature0°C
Maximum Operating Temperature40°C
Request a Repair

The Eaton Cutler-Hammer BAB2030S is a two-pole circuit breaker from the QuickLag series. It is rated for an operating voltage range of 120 to 240 Volts with a compact design that ensures easy installation. Designed with a steady 30 Amp current rating, this breaker can handle a significant load effectively.

This model features a noteworthy interrupt rating of 10 KAIC, providing robust performance in managing fault currents. The trip mechanism is non-interchangeable, which simplifies the device configuration during setup. It is appropriate for environments with relative humidity levels up to 80% without condensation and can maintain operational integrity within a temperature range of 0°C to 40°C.

Additionally, the BAB2030S can be installed at altitudes of up to 1000 meters above sea level. This versatility allows it to function effectively in various applications, making it suitable for numerous installation settings. Its bolt-on mount type ensures a secure installation in electrical panels.
