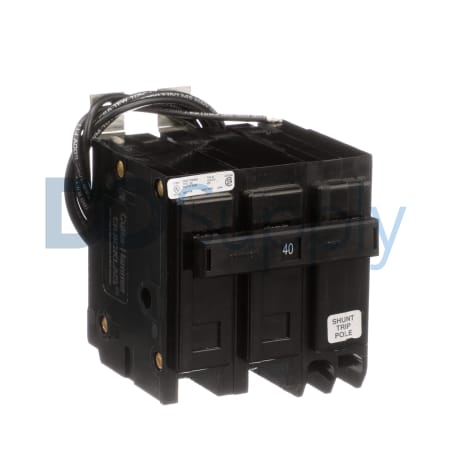

Product image is representative; revision or series may vary. Contact us to request a specific version.
BAB2040S
The BAB2040S from Eaton Cutler-Hammer is a thermal-magnetic breaker designed for effective circuit protection. Rated for 40 Amperes, it features a dual pole configuration suitable for single-phase applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for BAB2040S
| Manufacturer | Eaton Cutler-Hammer |
|---|---|
| Product Type | Thermal-Magnetic Breaker |
| Product Line | QuickLag |
| Part Number | BAB2040S |
| UPC | 786679369784 |
| Interrupt Capacity | 10 kAIC |
| Trip Mechanism | Thermal + Magnetic |
| Shunt Trip Control | 120/208/240 V AC |
| Phase | Single-Phase |
| Mounting Style | Bolt-On |
| Connection Termination | Box Lugs |
| Wire Compatibility | 14–4 AWG Cu/Al |
| Rated Load Current | 40 A |
| Supply Voltage Range | 120/240 V AC |
| Poles | 2 Poles |
| Frequency Suitability | 50/60 Hz |
| Fluorescent Switching | 120 V Fluorescent |
| Maximum Operating Temperature | 40 °C |
The Eaton Cutler-Hammer BAB2040S thermal-magnetic breaker is designed for robust electrical applications. This device is engineered with a dual pole setup for single-phase power systems. It accommodates a rated load current of 40 Amperes and ensures reliability with an interrupt capacity of 10 kAIC. The breaker hosts a trip mechanism that combines thermal and magnetic features for enhanced protection. Designed for simplicity, it can be mounted using a bolt-on style and features box lugs for connection termination.
The BAB2040S operates within a supply voltage range of 120 to 240 V AC, allowing versatility in various installations. Additionally, it supports wire compatibility for conductors measuring from 14 to 4 AWG in both copper and aluminum. Its frequency suitability spans both 50 and 60 Hz, making it adaptable for different electrical systems and standards. Users can also utilize it for 120 V fluorescent switching applications. The maximum operating temperature for this breaker is specified at 40 °C, making it suitable for various environmental conditions.
