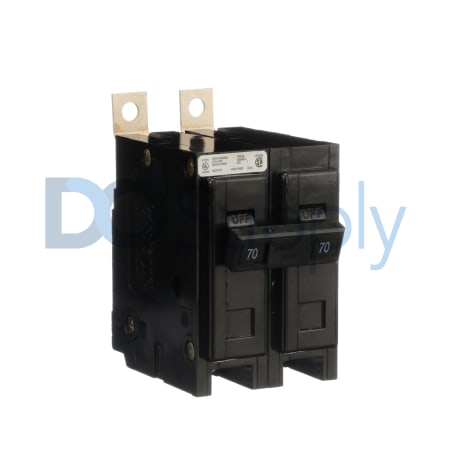

Eaton Cutler-Hammer QuickLag BAB2070S

Product image is representative; revision or series may vary. Contact us to request a specific version.

BAB2070S

|
Need a Specific Revision?

The Eaton Cutler-Hammer BAB2070S is a circuit breaker designed for efficient protection in electrical systems. It operates at a voltage rating of 120/240 V AC and handles a maximum current of 70 Amps.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for BAB2070S

ManufacturerEaton Cutler-Hammer
Product TypeCircuit Breaker
Product LineQuickLag
Part NumberBAB2070S
UPC786679377246
Line Side TermBolt-On
Poles2 Poles
Load Side TermLugs
Phase1 Phase
Connection TypeNon-Interchangeable
Amperage70 A
MountingPanel Mount
Voltage Rating120/240 V AC
Trip TypeThermal Magnetic
Interrupt Rating10 kA at 240 V
Request a Repair

The BAB2070S circuit breaker from Eaton Cutler-Hammer's QuickLag series is specifically designed to manage electrical loads effectively. Rated for 120/240 V AC and designed for a maximum of 70 Amperes, it ensures reliable circuit protection for a range of applications.

This breaker features a well-structured 2-pole setup intended for single-phase systems. A thermal magnetic trip design provides dependable overload and short-circuit protection, which is essential in preventing equipment damage. The interrupt rating of 10 kA at 240 V indicates its capability to safely clear fault currents without compromising system integrity.

For installation, the configuration includes bolt-on line side terminations along with lugs for the load side, promoting stable electrical connections. The module adopts a panel mount method, facilitating straightforward integration into existing systems. This circuit breaker's non-interchangeable connection type adds reliability by reducing installation errors, making it a functional choice for commercial or residential electrical setups.
